Hardware
Standard & Protocol:
-
IEEE802.3, IEEE802.3u, IEEE802.3ab

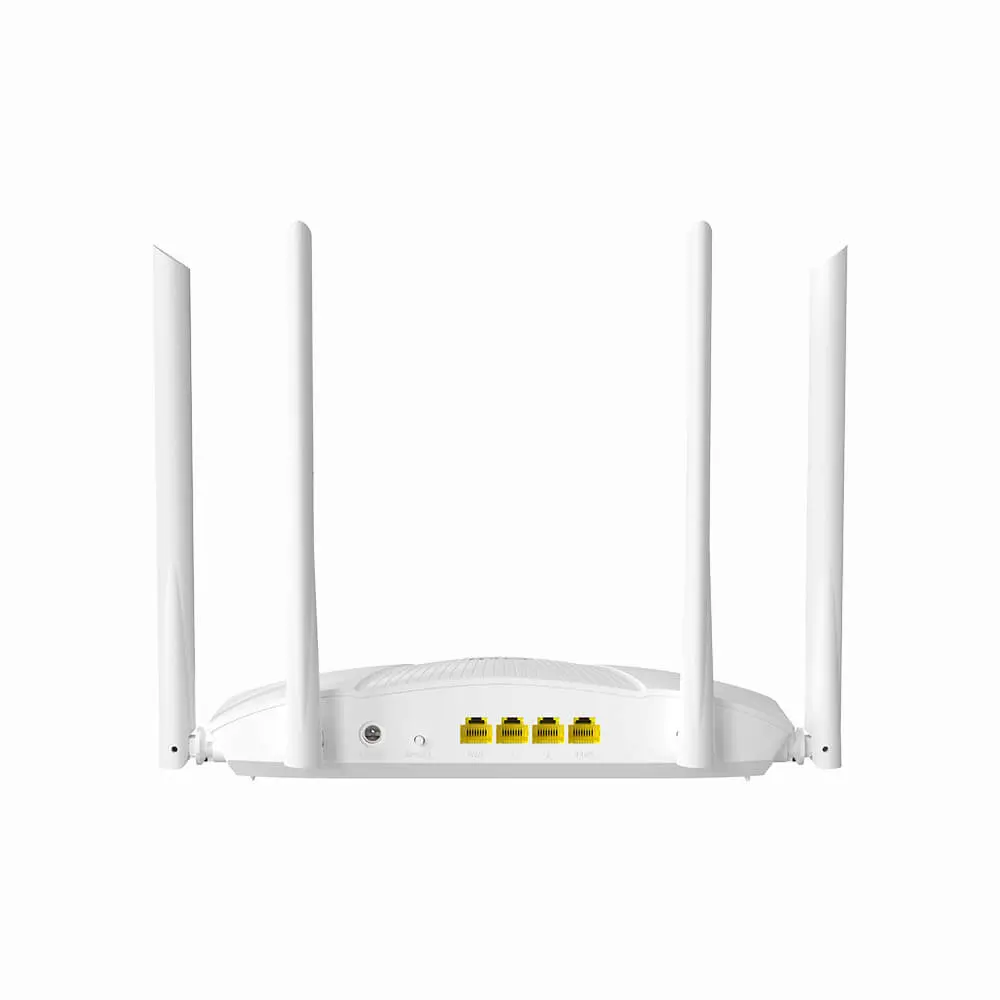

Interfaces:
-
1 × 10/100/1000Mbps WAN port
-
3 × 10/100/1000Mbps LAN ports
Antenna:
-
4 × 6dBi external antennas
Button:
-
1 × WPS
-
1 × Reset button
Power:
-
Input: AC 100-240V ~ 50/60Hz 0.6A
-
Output: DC 12V ⎓ 1.5A
LED Indicator:
-
SYS × 1
Dimension:
-
272.44 × 162.85 × 43.71 mm
Wireless
Wireless Standard:
-
IEEE 802.11ac/a/n/ax 5GHz
-
IEEE 802.11b/g/n/ax 2.4GHz
Data Rate:
-
5GHz: Up to 2402Mbps
-
2.4GHz: Up to 574Mbps
Frequency:
-
Simultaneous dual band 2.4 & 5GHz
Transmission Power:
-
CE: <20dBm (2.4G)
-
CE: <23dBm (5G)
Basic Features:
-
SSID Broadcast: Enable/Disable
-
Transmission Power: high, medium, low
-
Beamforming
-
MU-MIMO
-
Support signal strength adjustment
Wireless Security:
-
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
-
WPA3-SAE/WPA2-PSK
-
Wireless Security: Enable/Disable
-
WPS (WiFi Protected Setup)
-
Fast encryption
Software
Internet Connection Type:
-
PPPoE, Dynamic IP, Static IP
-
PPPoE (Russia), PPTP (Russia)
-
L2TP (Russia), Unifi, Maxis, Maxis-special, Manual
Operating Mode:
-
Wireless Router Mode
-
Universal Repeater Mode
DHCP:
-
DHCP Server
-
DHCP Client List
-
DHCP Reservation
Virtual Server:
-
Port Forwarding
-
DMZ Host
-
UPnP
Firewall:
-
Forbid UDP flood attack
-
Forbid TCP flood attack
-
Forbid ICMP attack
-
Forbid WAN PING from internet
DDNS:
-
Support DynDNS, No-ip
VPN:
-
PPTP server
-
PPTP client
-
L2TP client
Special Features:
-
WPA3
-
Dual-band
-
Wireless Signal Adjustment
-
Wi-Fi Timer Switch
-
Smart Power Saving
-
Panel LED Switch
-
Tenda App: Local and Remote Management
Other Function:
-
Bandwidth Control
-
Guest Network
-
IPTV
-
VLAN
-
MAC Clone
-
Static Routing
-
System Log
-
Backup & Restore configurations
-
Firmware upgrade online
-
Firmware upgradeable via browser
-
Supports IPv6
Others
Temperature:
-
Operating Temperature: 0℃ ~ 40℃
-
Storage Temperature: -40℃ ~ 70℃
Humidity:
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
Certification:
-
CE, RoHS, FCC

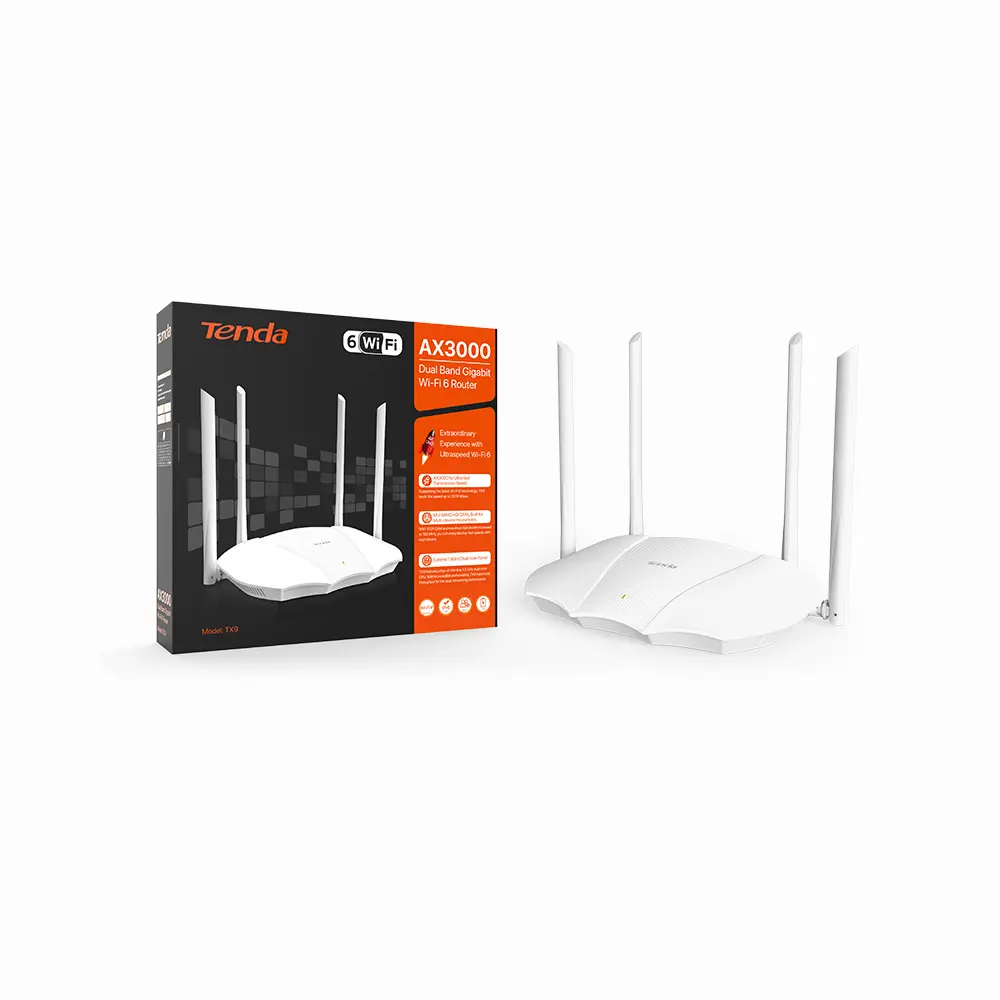

Package Contents:
-
Wireless Router × 1
-
Power Adapter × 1
-
Install Guide × 1
-
Ethernet Cable × 1
