Hardware
IEEE Standards:
-
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards:
-
GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
-
EPON: IEEE 802.3ah

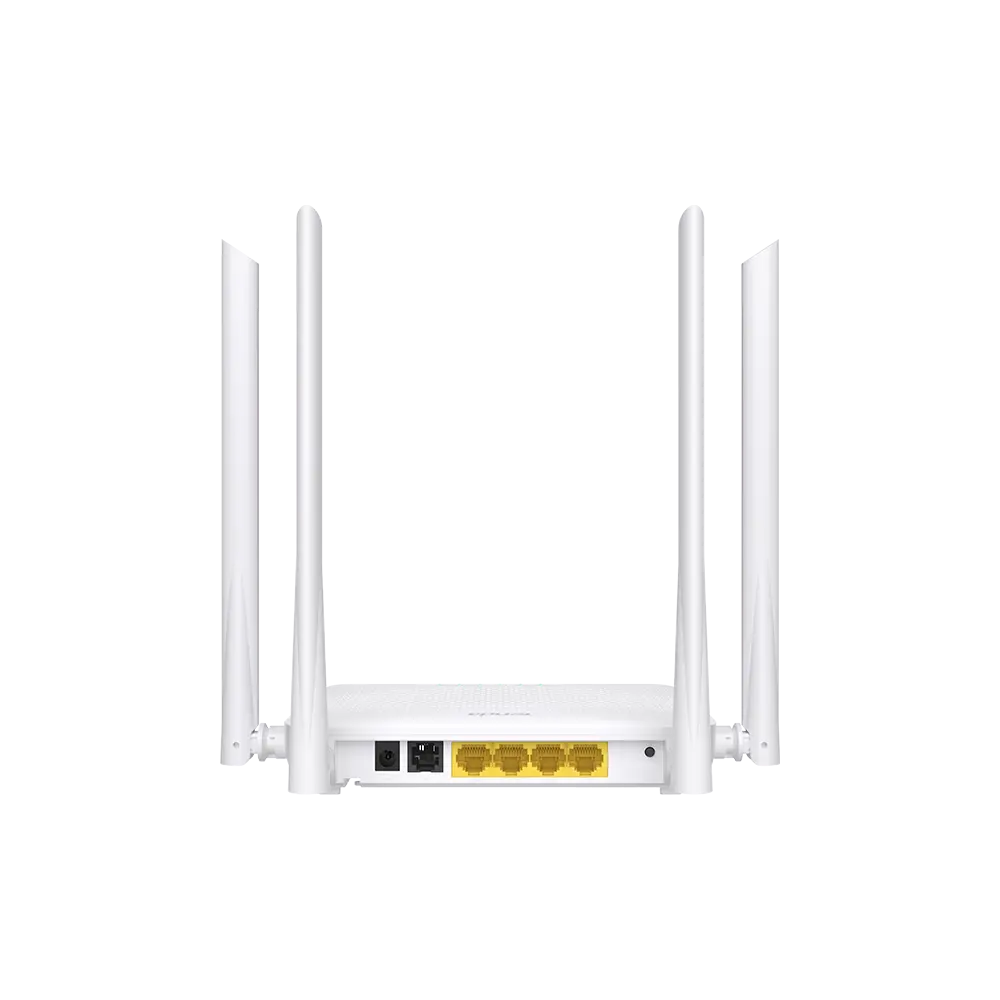

Interfaces:
-
1 × SC/APC or SC/UPC (optional) Port
-
4 × 1000 Mbps RJ45 LAN Ports
-
1 × TEL Port
-
1 × DC Power
LED Indicator:
-
PWR, PON, LOS, LAN, WLAN, TEL
Button:
-
1 × WPS/RESET Button
Optical Mode:
-
Class B+
Optical Wavelength:
-
Transmit at 1310 nm
-
Receive at 1490 nm
Transmission Distance:
-
20 km Max
Bandwidth:
-
GPON: Upstream 1.244 Gbps Max, Downstream 2.488 Gbps Max
-
EPON: Upstream 1.244 Gbps Max, Downstream 1.244 Gbps Max
Dimension:
-
220.8 × 141.9 × 31 mm (L × W × H)
TX Power:
-
0.5 ~ 5 dBm
RX Power:
-
-28 ~ -8 dBm
External Power Supply:
-
DC 12V / 1.0A
Power Consumption:
-
≤ 12 W
Software / Network Features
DHCP Server:
-
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection:
-
PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connections
Business Type:
-
TR069, Internet, IPTV, VoIP
Quality of Service:
-
Bandwidth Control
IP Version:
-
IPv4, IPv6
Services:
-
DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, QoS, Preset, EasyMesh
VPN Pass-through:
-
PPTP, L2TP, IPsec Pass-through
Firewall:
-
ALG, IP Filter, Port Filter, MAC Filter, URL Filter
-
Port Forwarding, DMZ, DDoS
IPv6 Support:
-
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics:
-
Ping, Ping6, Tracert, Tracert6
TR069:
-
ACS, Connection Request
VoIP:
-
Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
Wireless
Frequency:
-
2.4 GHz & 5 GHz
Bandwidth:
-
2.4G: 20 MHz / 40 MHz
-
5G: 20 MHz / 40 MHz / 80 MHz
Channel Range:
-
2.4G: CH1–CH13
-
5G: CH36–CH48, CH149–CH165
Antenna:
-
4 × 5 dBi
Easy Client Setup:
-
WPS
Speed:
-
11n 300 Mbps + 11ac 867 Mbps
Transmission Power:
-
2.4G: <20 dBm (EIRP)
-
5G: <23 dBm (EIRP)
Wireless Functions:
-
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security:
-
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs:
-
Main SSID at 2.4 GHz and 5 GHz
-
4 Guest SSIDs at both 2.4 GHz and 5 GHz
Max Terminal Linked:
-
32 at both 2.4 GHz and 5 GHz
Environment
Operating Temperature:
-
0°C ~ 45°C
Storage Temperature:
-
-40°C ~ 70°C
Operating Humidity:
-
10% ~ 95% (Non-condensing)
Storage Humidity:
-
5% ~ 90% (Non-condensing)
Others
Package Contents:
-
1 × HG10
-
1 × Power Adapter
-
1 × User Manual
-
1 × RJ45 Cable
-
1 × RJ11 Cable
Certification:
-
CE, RoHS, Anatel
