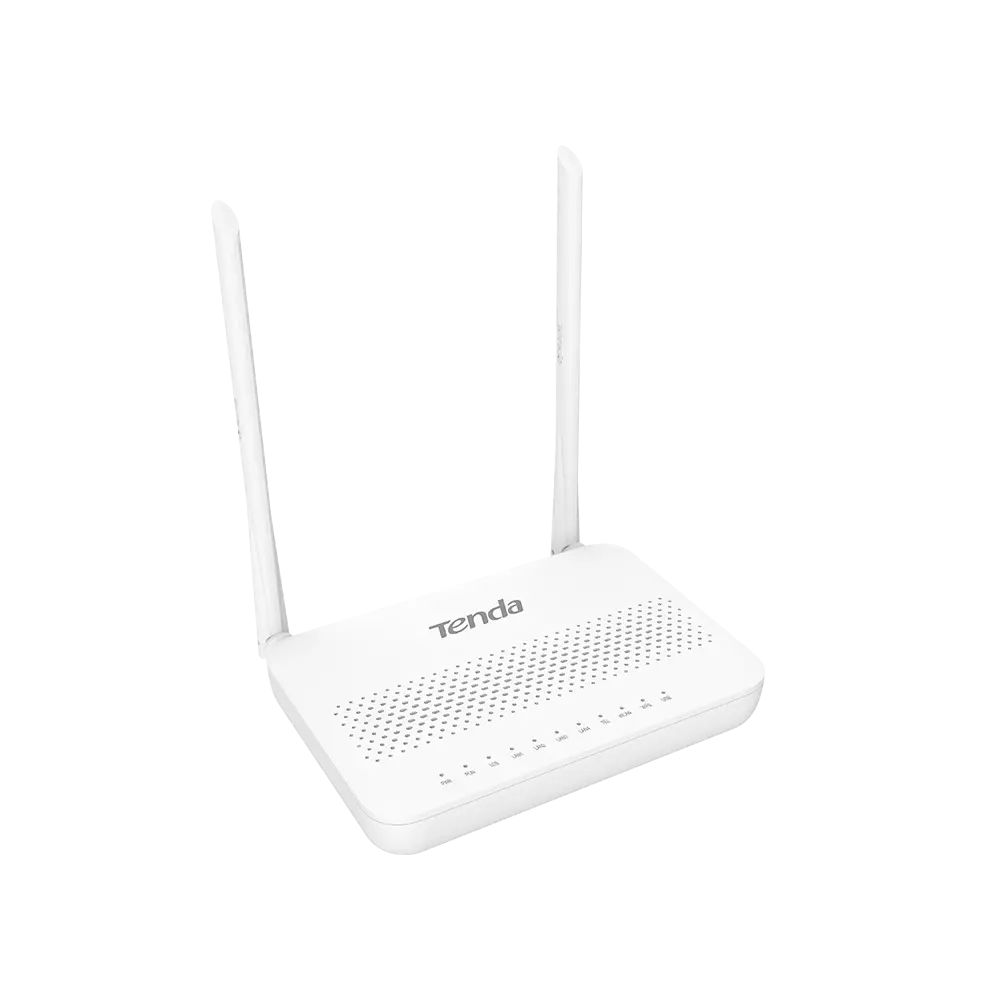

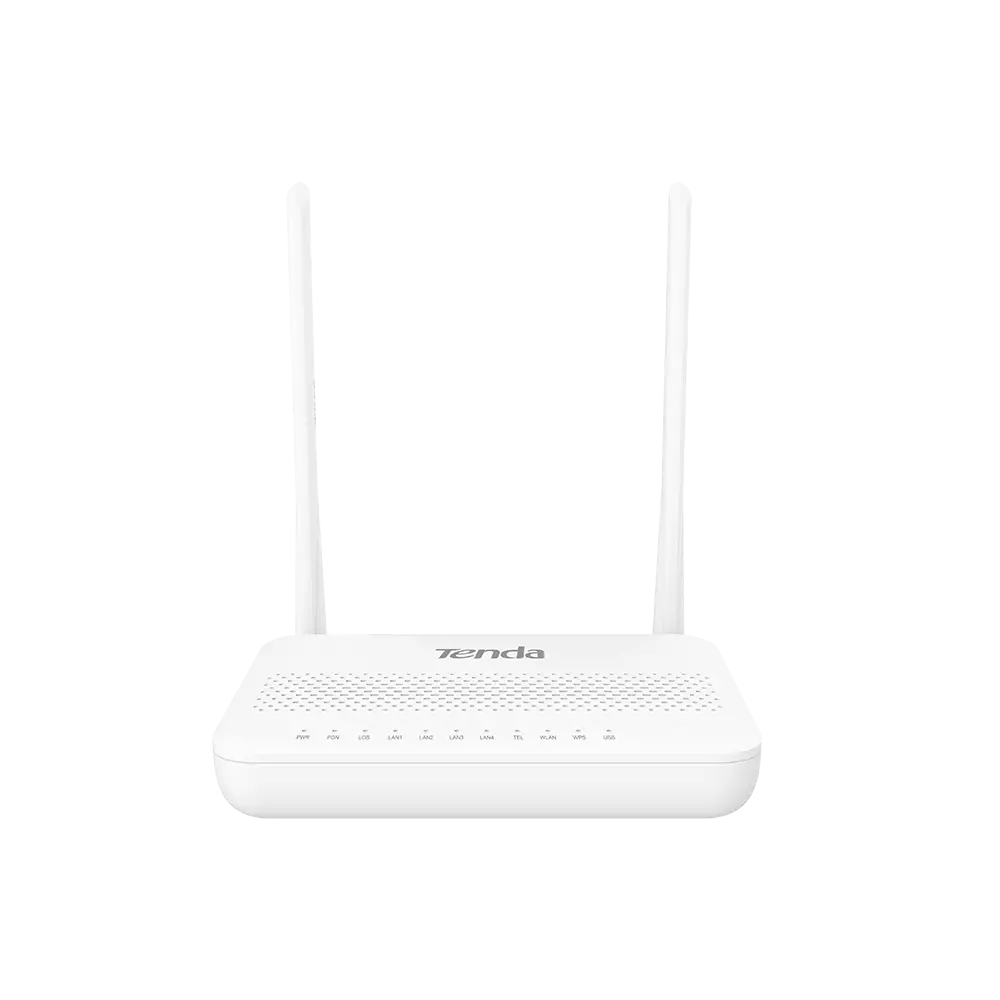

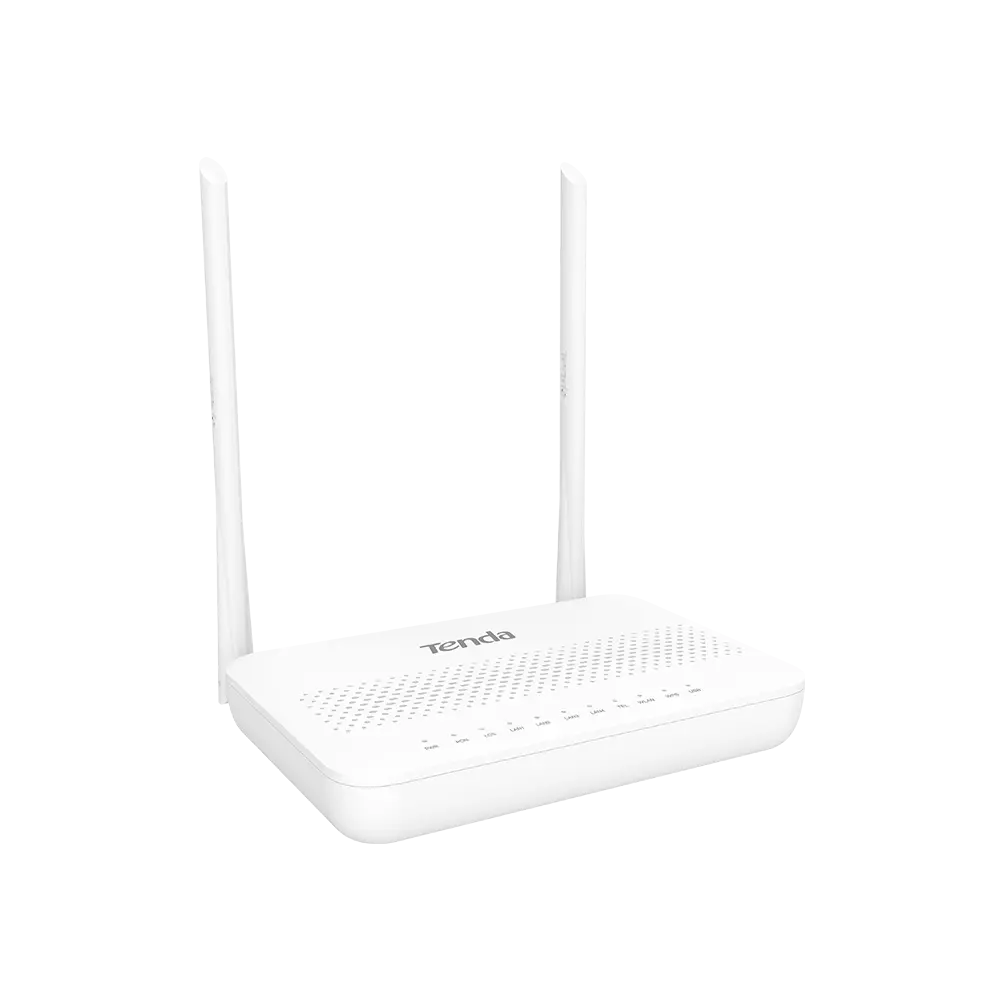

HG6 GPON Wi-Fi Router
Hardware
IEEE Standards:
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards:
ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4

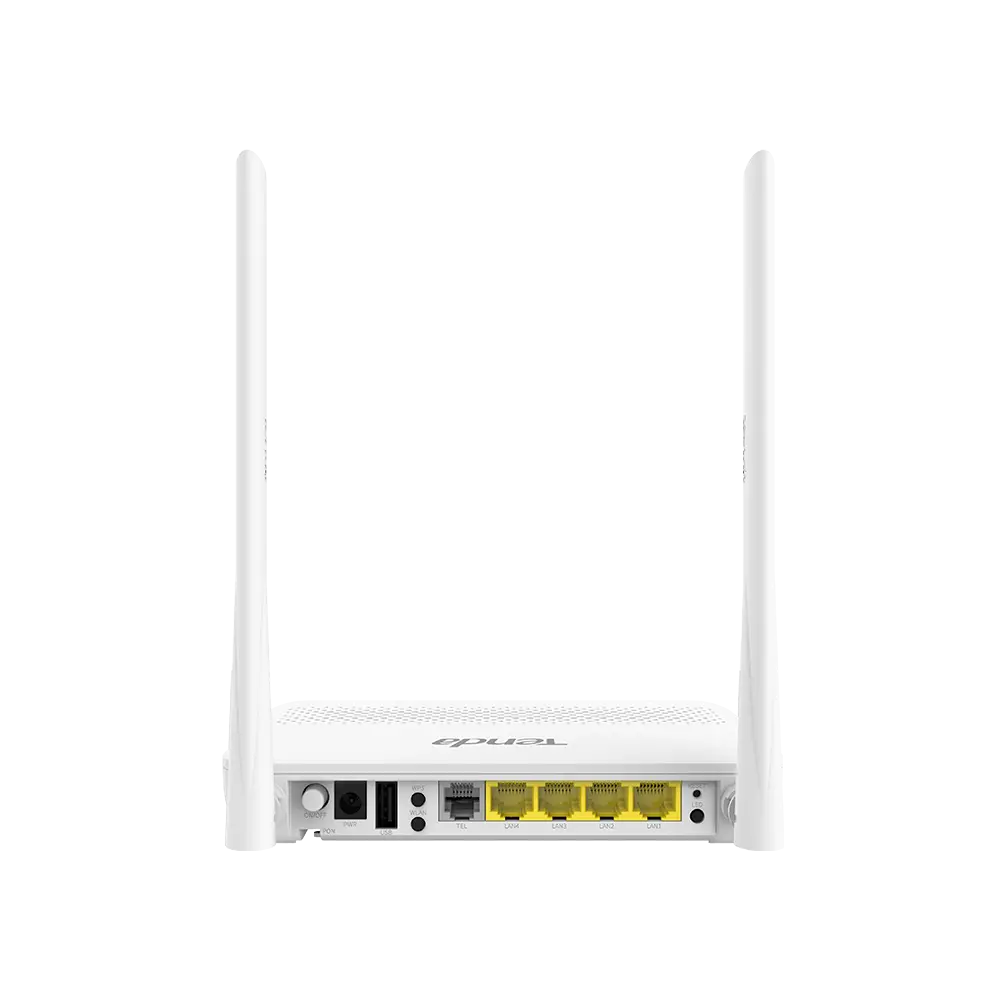

Interfaces:
1 × SC/APC GPON Port
1 × 1000 Mbps RJ45 LAN Port
3 × 100 Mbps RJ45 LAN Ports
1 × USB Port
1 × VoIP Port
1 × DC Port
LED Indicators:
PWR, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, WLAN, WPS, USB
Buttons:
Power On/Off × 1
WPS × 1
WLAN × 1
RESET × 1
LED × 1
Optical Mode:
Class B+
Optical Wavelength:
Transmit: 1310 nm
Receive: 1490 nm
Transmission Distance:
Max 20 km
Bandwidth:
Upstream: 1.25 Gbps Max
Downstream: 2.5 Gbps Max
Dimensions:
163 × 115 × 28 mm (W × D × H)
TX Power:
0.5–5 dBm
RX Power:
-28 – -8 dBm
External Power Supply:
DC 12V / 1.0A
Power Consumption:
≤12 W
Software / Features
DHCP Server:
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection:
PPPoE, Dynamic IP, Static IP, Bridge
Business Type:
TR069, Internet, IPTV, VoIP
Quality of Service:
Bandwidth Control
IP Version:
IPv4, IPv6
Services:
DHCP, Dynamic DNS, IGMP Proxy, UPnP, Samba
VPN Pass-through:
PPTP, L2TP, IPsec Pass-through
Firewall:
ALG, IP Filter, Port Filter, MAC Filter, URL Filter, Port Forwarding, DMZ
IPv6 Support:
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics:
Ping, Ping6, Tracert, Tracert6
TR069:
ACS, Connection Request
VoIP:
Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
Wireless
Frequency:
2.4 GHz (IEEE 802.11 b/g/n)
Bandwidth:
20/40 MHz
Channel Range:
CH1–CH13
Antenna:
2 × 6 dBi
Easy Client Setup:
WPS Button, WPS LED
Speed:
11n 300 Mbps
Transmission Power:
<20 dBm (EIRP)
Wireless Functions:
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security:
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs:
Main SSID
4 Guest SSIDs
Max Terminals Linked:
32
Environment
Operating Temperature:
0℃ ~ 45℃
Storage Temperature:
-40℃ ~ 70℃
Operating Humidity:
10% ~ 90% (Non-condensing)
Storage Humidity:
5% ~ 90% (Non-condensing)
Package Contents
HG6 × 1
Power Adapter × 1
Quick Install Guide × 1
RJ45 Cable × 1
RJ11 Cable × 1
Certification:
CE, FCC, RoHS, Anatel
