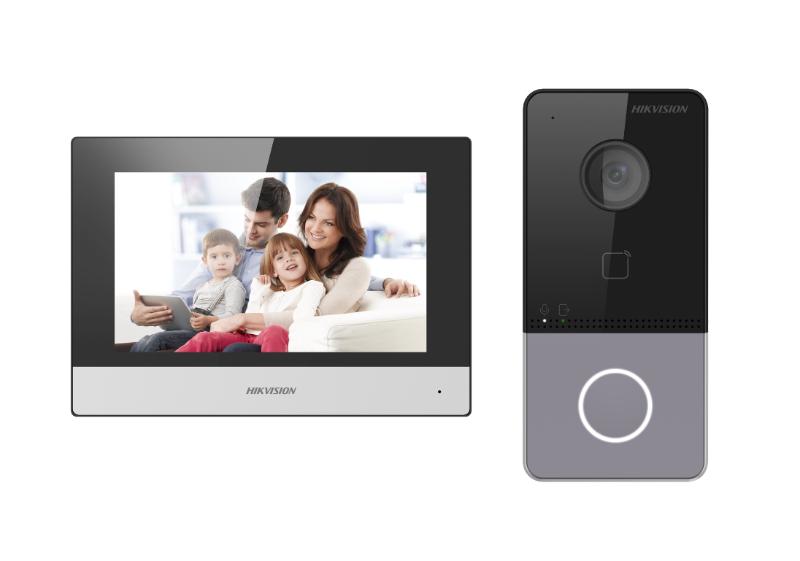

Door Station
System Parameters
| Operation System | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 128 MB |
Video Parameters
| Camera | 2MP HD camera |
| Night Vision | Low illumination IR supplement mode: 3 m |
| Backlight Compensation | Support |
| Digital Noise Reduction | Support |
| WDR | True WDR |
| Field of View | Horizontal: 129°, Vertical: 75° |
| Video Compression | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
| Motion Detection | Support |
Audio Parameters
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Intercom | Two-way audio communication |
Network Parameters
| Wired Network | 10/100 Mbps Ethernet |
| Network Protocol | TCP/IP, RSTP |
Device Interfaces
| RS-485 | 1 |
| Alarm Input | 4 |
| TAMPER Switch | 1 |
General
| Power Supply | IEEE802.3af, standard PoE 12 VDC |
| Power Consumption | ＜ 10 W |
| Working Temperature | -40° C to 53° C (-40° F to 127.4° F) |
| Working Humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection Level | IP65 |
Indoor Station
System Parameters
| Operation System | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
Display Parameters
| Display Screen | 7-inch colorful TFT screen |
| Display Resolution | 1024 × 600 |
| Operation Method | Capacitive touch screen |
Audio Parameters
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
Network Parameters
| Wired Network | 10/100 Mbps self-adaptive |
| Wireless Network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
Device Interfaces
| RS-485 | 1 |
| Alarm Input | 8-ch alarm inputs |
| Relay Output | 2 |
| TF Card | Max to 32 G, SD 2.0 or lower version |
General
| Power Consumption | ≤ 6 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
