Product Information
Model:
O3
Dimension:
270 × 94.86 × 67.5 mm
Deployment:
Pole Mount / Wall Mount
Application Scenarios:
PtP and PtMP wireless connection for private ISP access or CCTV surveillance
Hardware
Frequency Range:
2.4GHz
Compliant Standards:
IEEE 802.11b/g/n
Maximum Wireless Rate:
150 Mbps

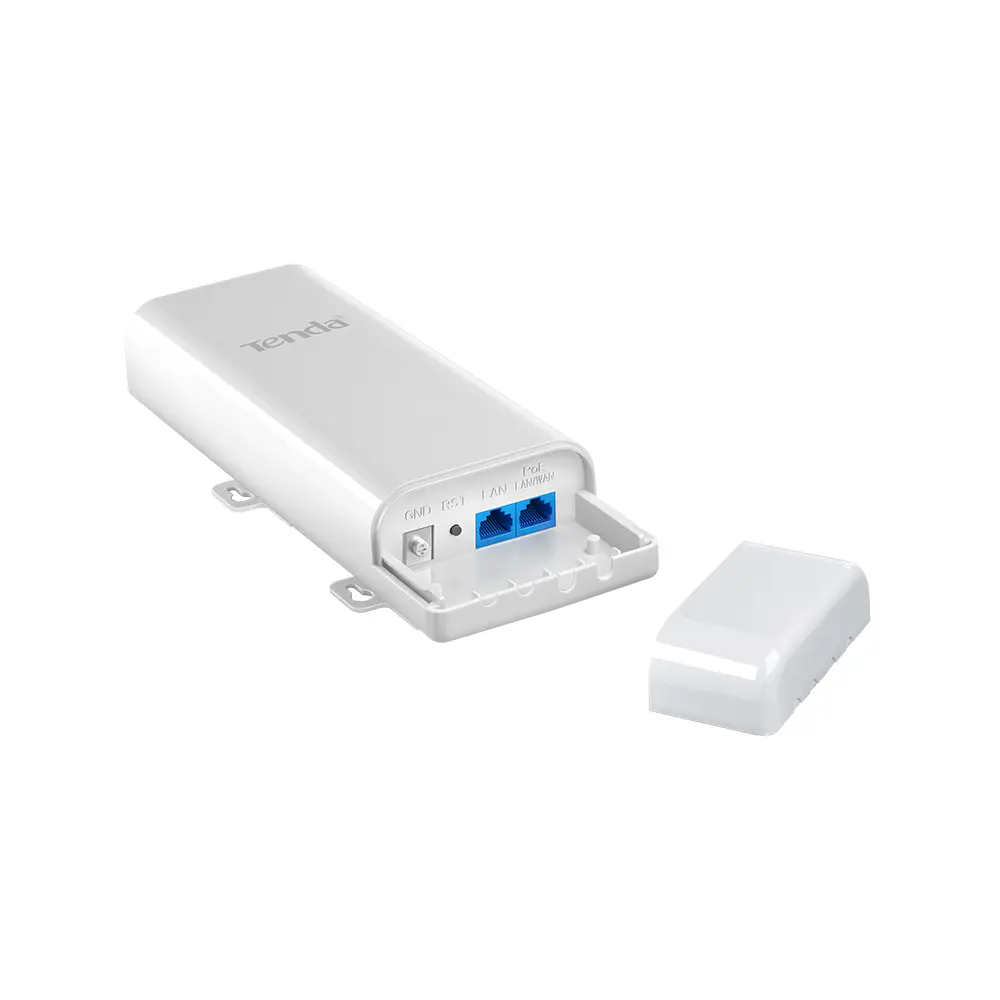

Interfaces:
2 × 10/100 Mbps Ethernet Port
Antenna Polarization:
Horizontal Polarization
Antenna Gain:
12 dBi
Antenna Beamwidth:
Horizontal: 60°
Vertical: 30°
GND:
1 × GND
Reset Button:
1 × Reset Button
Power Consumption:
4.3 W
Waterproof Level:
IP65
LED Indicator:
PoE/LAN, LED1, LED2, LED3
Power Method:
12V 1A Passive PoE
Lightning Protection:
6000V
Passive PoE:
Passive power over Ethernet via PoE/LAN (+4,5 pins, -7,8 pins)
Voltage range: 9-13.8V DC
Reception Sensitivity:
11b 1 Mbps: -92 dBm ±1.5 dBm
11n MCS0: -92 ±1.5 dBm
11n MCS7: -72 ±1.5 dBm
Software / Features
Operating Mode:
AP / Station / WISP / PtP / WDS Repeater / Router
Enable/Disable Wireless Radio:
Support
SSID Hidden:
Support
Wireless Client Isolation:
Support
SSID Isolation:
Support
Channel Bandwidth:
20 / 40 MHz
Wireless Access Control:
Support
Weak Signal Client Limitation:
Support
Transmission Power:
Adjustable by 1 dBm
WMM Capable:
Support
APSD Capable:
Support
Wireless Security:
64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK, WPA, WPA2
Transparent Bridge:
Support
VLAN Tagging for SSID:
Support
DHCP Server:
Support
VPN Pass-Through:
PPTP, L2TP
Remote Web Access:
Support
Schedule Reboot:
Support
Page Timeout:
Support
Ping Watchdog:
Support
DDNS:
no-ip, dyndns.org
Network Diagnoses:
Ping, Traceroute, Signal Scan
Time and Date Setting:
Support
Firmware Upgrade:
Support
Backup/Restore Configuration:
Support
Username Management:
Support
System Logs:
Support
Managed By Controller:
PC Software – CPE Assistant
Environment
Operating Temperature:
-30℃ ~ 60℃
Storage Temperature:
-40℃ ~ 70℃
Operating Humidity:
10% ~ 90% non-condensing
Storage Humidity:
10% ~ 90% non-condensing
Default Login
IP: 192.168.2.1
Username: admin
Password: admin
Certification
FCC, CE, RoHS
Package Contents
1 × 2.4GHz 11n 12 dBi 150 Mbps Outdoor CPE O3
1 × Power Adapter
1 × PoE Injector
1 × Quick Installation Guide
