Hardware

Standard & Protocol:

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

CPU:

• 1 GHz

RAM:

• 128 MB

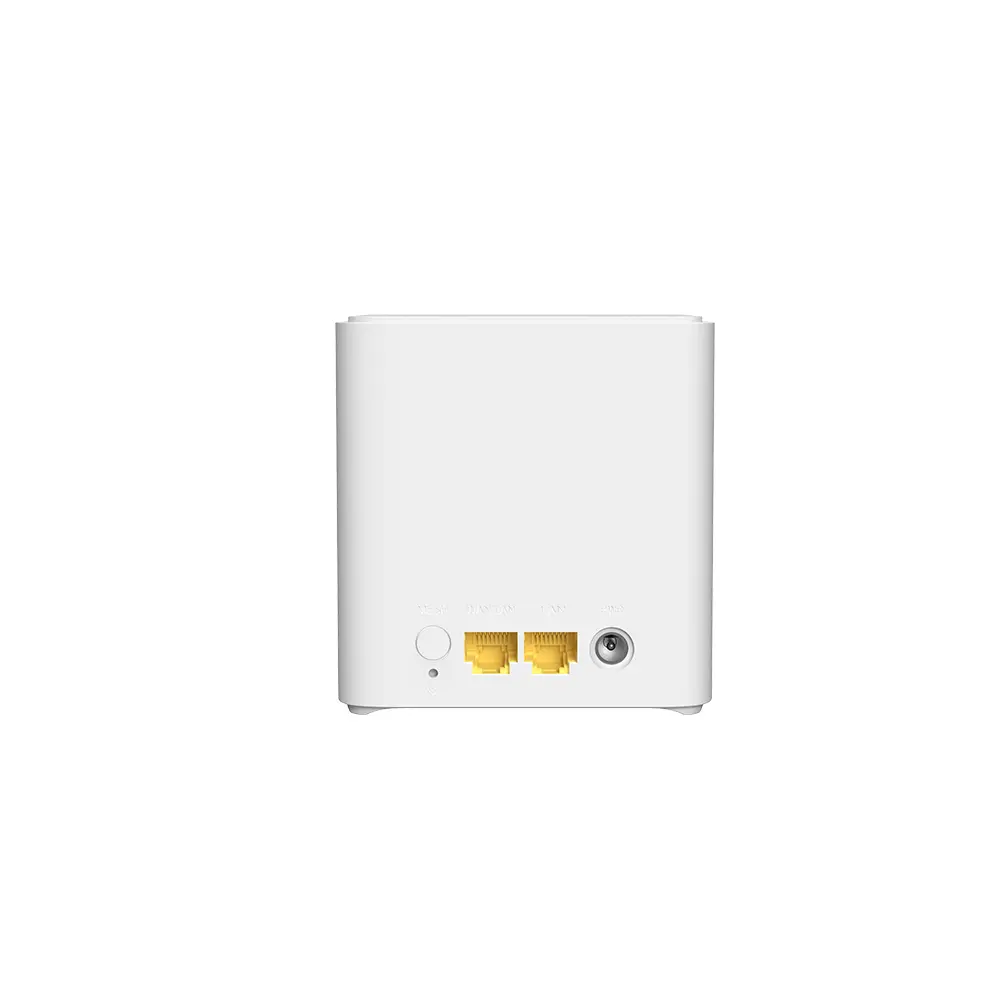

Interfaces:

• 1 × 10/100/1000 Mbps WAN port

• 1 × 10/100/1000 Mbps LAN port

Antenna:

• 2 × 3 dBi Internal antennas

Buttons:

• 1 × Reset Button

• 1 × MESH Button

Power:

• Input: AC 100-240V ~ 50/60Hz

• Output: DC 12V ⎓ 1A

LED Indicator:

• SYS × 1

Dimension:

• 90 × 90 × 93 mm (3.54 × 3.54 × 3.65 in.)

Wireless

Wireless Standard:

• 2.4GHz: IEEE 802.11n/b/g

• 5GHz: IEEE 802.11ax/ac/n/a

Data Rate:

• 5GHz: 1201 Mbps

• 2.4GHz: 300 Mbps

Frequency:

• 2.4GHz & 5GHz

Transmission Power:

• CE: <20 dBm (2.4GHz), <23 dBm (5GHz)

• FCC: <30 dBm (2.4GHz & 5GHz)

Basic Functions:

• OFDMA

• MU-MIMO

• Beamforming

Wireless Security:

• WPA2-PSK

• WPA3-SAE/WPA2-PSK

• Wireless Encryption Enable/Disable

• WPS Fast Connection

Software / Features

Internet Connection Type:

• PPPoE, Dynamic IP, Static IP

• PPPoE (Russia), PPTP (Russia), L2TP (Russia)

• Unify, Maxis, Maxis-special, Celcom, Digi

Network Protocol:

• IPv4 & IPv6

Operating Modes:

• Router Mode

• AP Mode

Parental Control:

• URL Filter

• Time Limit

DHCP:

• DHCP Server

• DHCP Client List

• DHCP Reservation

Virtual Server:

• Port Forwarding

• DMZ Host

• UPnP

Firewall:

• Forbid UDP Flood Attack

• Forbid TCP Flood Attack

• Forbid ICMP Flood Attack

• Forbid WAN Ping from Internet

VPN:

• IPsec Pass Through

• PPTP Pass Through

• L2TP Pass Through

• PPTP VPN Server / Client

• L2TP VPN Client

DNS:

• DynDNS, no-ip, oray, 88ip

Special Features:

• WPA3

• TR069

• Tenda EasyMesh

• Unify 2.4 GHz & 5 GHz

• Smart LED on/off

• Amazon Alexa

• One-button Fault Diagnosis

• Broadband Account Migration

• Tenda App: Local and Remote Management

• Speed Test

• Monthly Report

Other Functions:

• IPTV

• IPv6

• Guest Network

• System Log

• Remote Web Management

• MAC Clone

• Backup & Restore configurations

• Automatic Access Detection

• Firmware Upgrade Online

Environment

Operating Temperature:

• 0℃ ~ 40℃

Storage Temperature:

• -40℃ ~ 70℃

Operating Humidity:

• 10% ~ 90% RH non-condensing

Storage Humidity:

• 5% ~ 90% RH non-condensing

Certification

• CE

• FCC

• RoHS

Package Contents

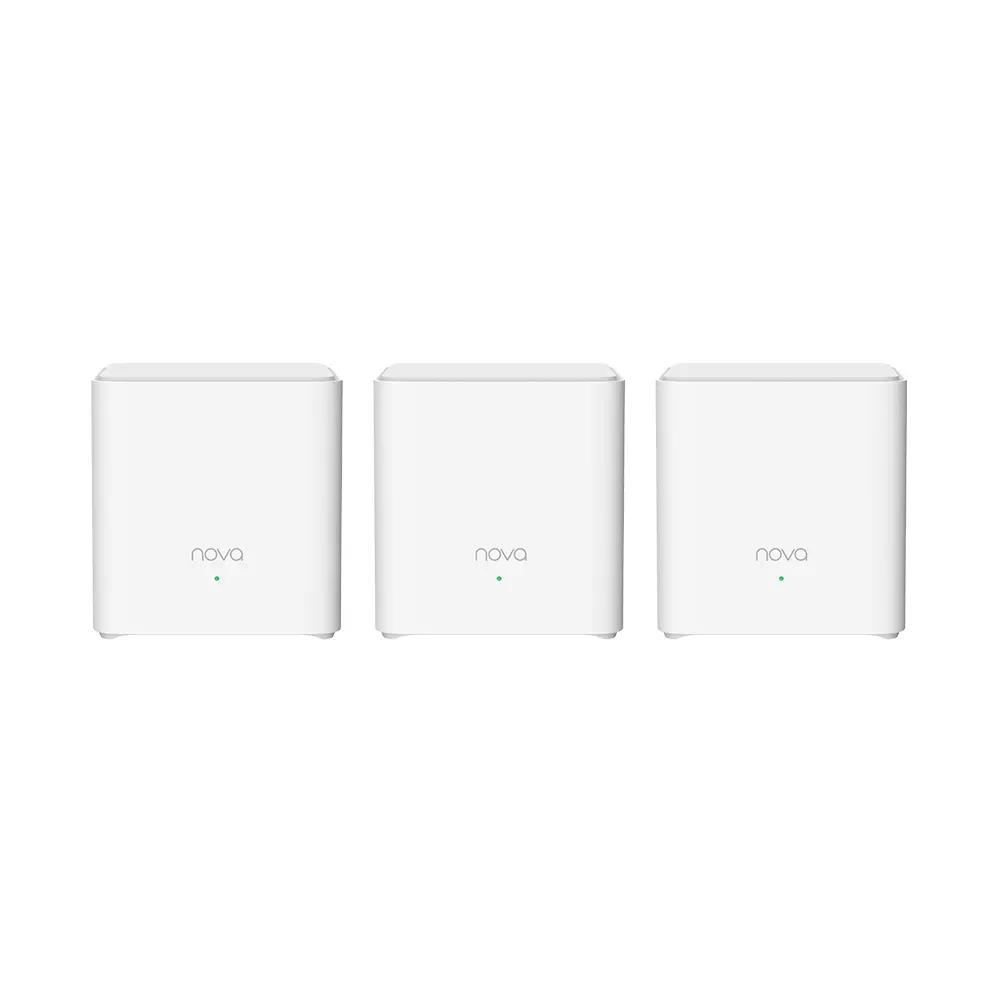

• Mesh3X × 3

• Quick Installation Guide × 1

• Gigabit Ethernet Cable × 1

• 12V / 1A Power Adapter × 3
