EZVIZ X5S-4W 4-Channel Wireless NVR

Specifications
Model	CS-X5S-R100-4W
IPC Access Capability
Wireless/Wired IPC Access Capability	3K *4
Wired IPC Access Capability	3K *4 (X5S-4W)
Network Parameters
Antenna Number	2
Max Wireless Range	100m
Radio Frequency	2.4G
Ethernet Port	One 10/100M adaptable Ethernet interface
Required Access Bandwidth	50 Mbps/100 Mbps
Video Output
VGA	1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz
HDMI	1 channel resolution up to 2592*1944/30HZ
Audio/Video Codec
Recording Resolution	3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding	H.265, H.264
Decode Playback	Supports 4*3K
Video Recording Management
Video Recording Mode	Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording
Backup Mode	Hard disk backup, Internet application backup
Playback Mode	Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback
Open Protocol
Open Protocol Support	HIKVISION, ONVIF (V.2.5)
HDD
Interface Type	One built-in SATA port
Capability	Supports 1TB to 8TB 3.5-inch HDD
External Interface
Audio Input/ Output	Not support
Hardware Reset	Supports
USB2.0 Interface	2
Dimensions

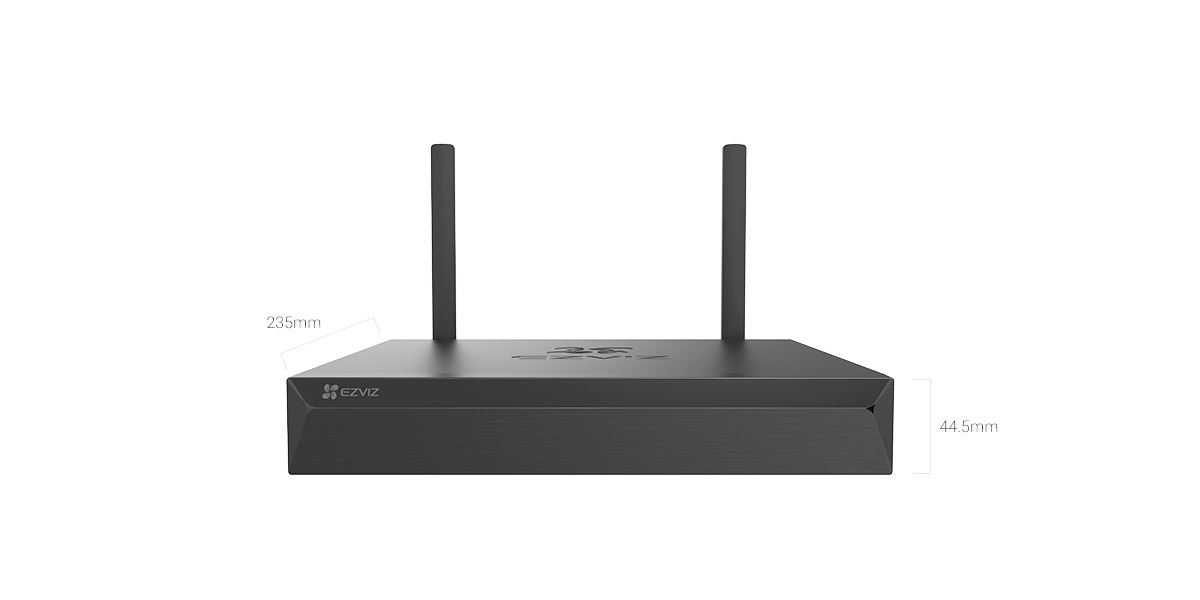

Product Dimensions	235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions	387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)
Power Supply
DC	12V/1.5A
Consumption
Standby status	≤8W
Weight
Net Weight	932 g
In the box
In the box	– X5S NVR × 1
	– Power Adapter × 1
	– Mouse × 1
	– Screw Kit × 1
	– Regulatory Information × 2
	– Quick Start Guide × 1
Certifications
Certifications	CE / UL / RoHS / WEEE / REACH
