Key Specifications
Product Information
Product Type
- Product Type: Outdoor AP
Hardware Specifications
Wi-Fi Radio
- Radio design: Dual-radio, 4 spatial streams (2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO)
- Maximum wireless data rate: 1774 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 1201 Mbps
- 2.4 GHz wireless data rate: 573 Mbps
Antenna
- Antenna: 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
- Product dimensions (diameter x height): Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket)
- Color: White
- Weight: ≤ 1.2 kg (2.65 lbs.) (without packaging materials)
Port Specifications
- Number of 10/100/1000BASE-T ports: 2
Power Supply and Consumption
- Power supply: DC power adapter, PoE+ (Note: If both are available, DC is preferred.)
- Local power supply: Yes, one DC power connector (12 V, 1.5 A)
- Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.)
- PoE budget: No
- Maximum power consumption: 18 W
Environment and Reliability
- Operating temperature: –30°C to +65°C (–22°F to +149°F)

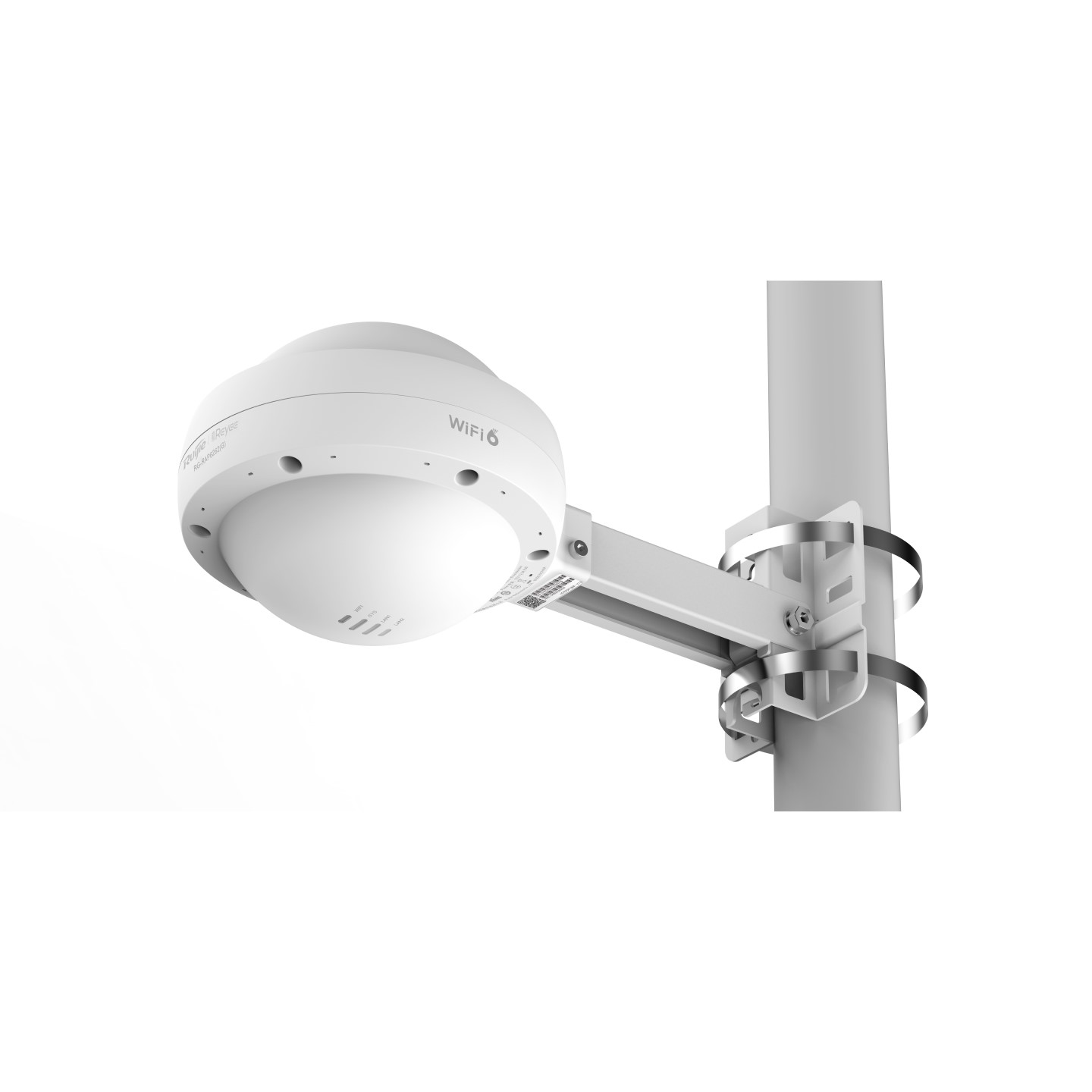

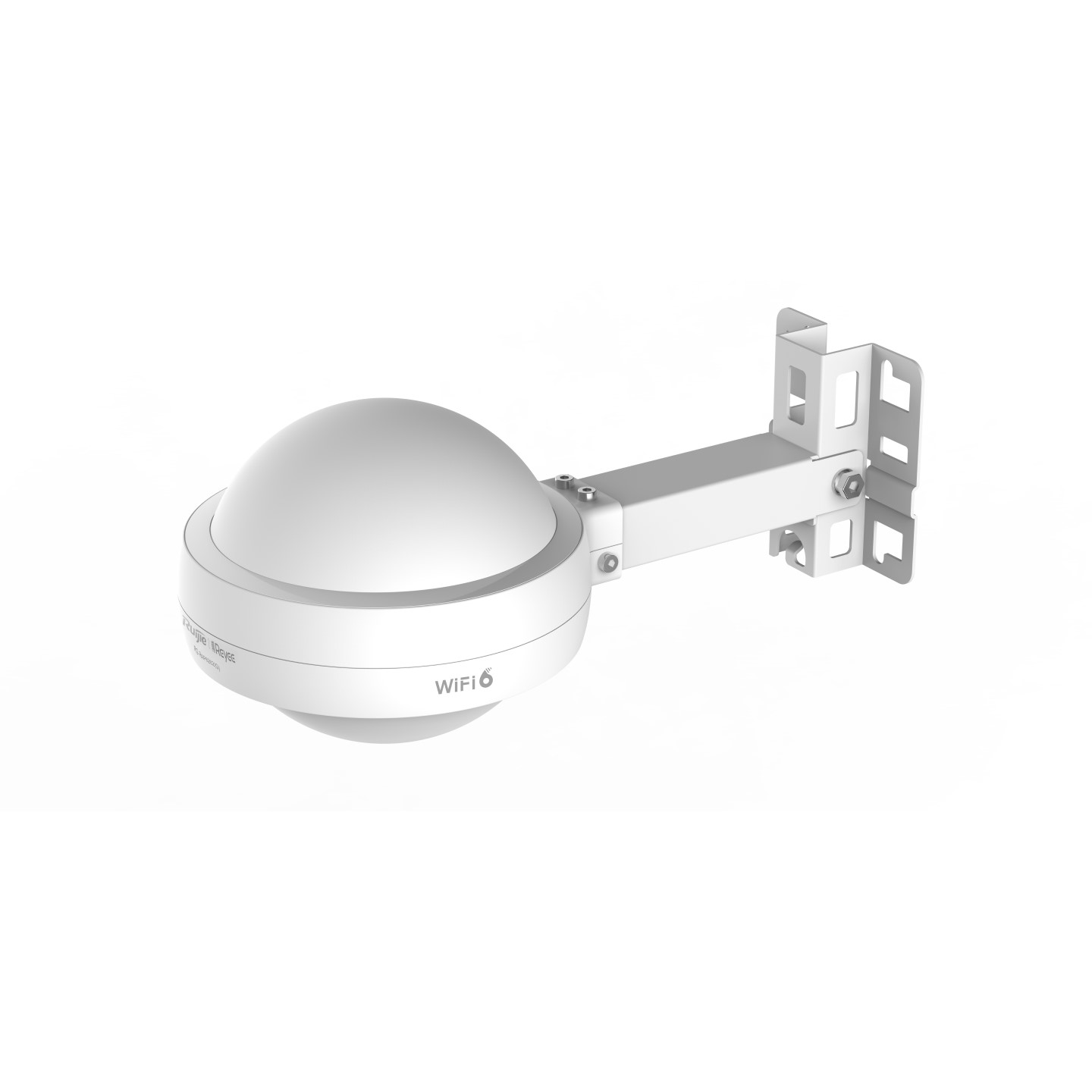

- Mounting options: Wall/Pole
- IP rating: IP68
Software Specifications
WLAN
- Maximum number of associated wireless clients: 64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz enabled)
- Maximum number of devices that can be managed: 300
Order Information
- RG-RAP6262(G) Access Point: 1
- User Manual: 1
- Pole Clamps: 2
- Mounting Plate: 1
- Expansion Bolts (M8*60): 4
- M8*20 Screws: 2
- Cable Glands (Pre-installed): 2
- Connecting Rod (Pre-installed): 1
- Warranty Card: 1
- Package Weight: 2.94 kg
- Package Dimension (w x d x h): 466 mm x 257 mm x 217 mm
