Key Specifications
Product Information
Product Category
- Product Category: Layer 2
Hardware Specifications
Product Information
- Warranty: 3 years
Port Specifications
- Total number of RJ45 ports: 6
- Total number of optical ports: 1
- Number of 1GE combo ports: 1
- Number of 1GE SFP ports: 1
- Number of 10/100/1000BASE-T ports: 6
Power Supply and Consumption
- Number of PoE Out ports: 4
- Number of PoE/PoE+ Out ports: 4
- PoE budget: 54 W
- PoE power pins: 1–2 (+), 3–6 (-)
System Specifications
- Forwarding rate: 8.9 Mpps
- Switching capacity: 12 Gbps(bit/s)
Environment and Reliability
- Operating temperature: 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
- PoE watchdog: Yes
Security
- Port isolation: Yes
Order Information

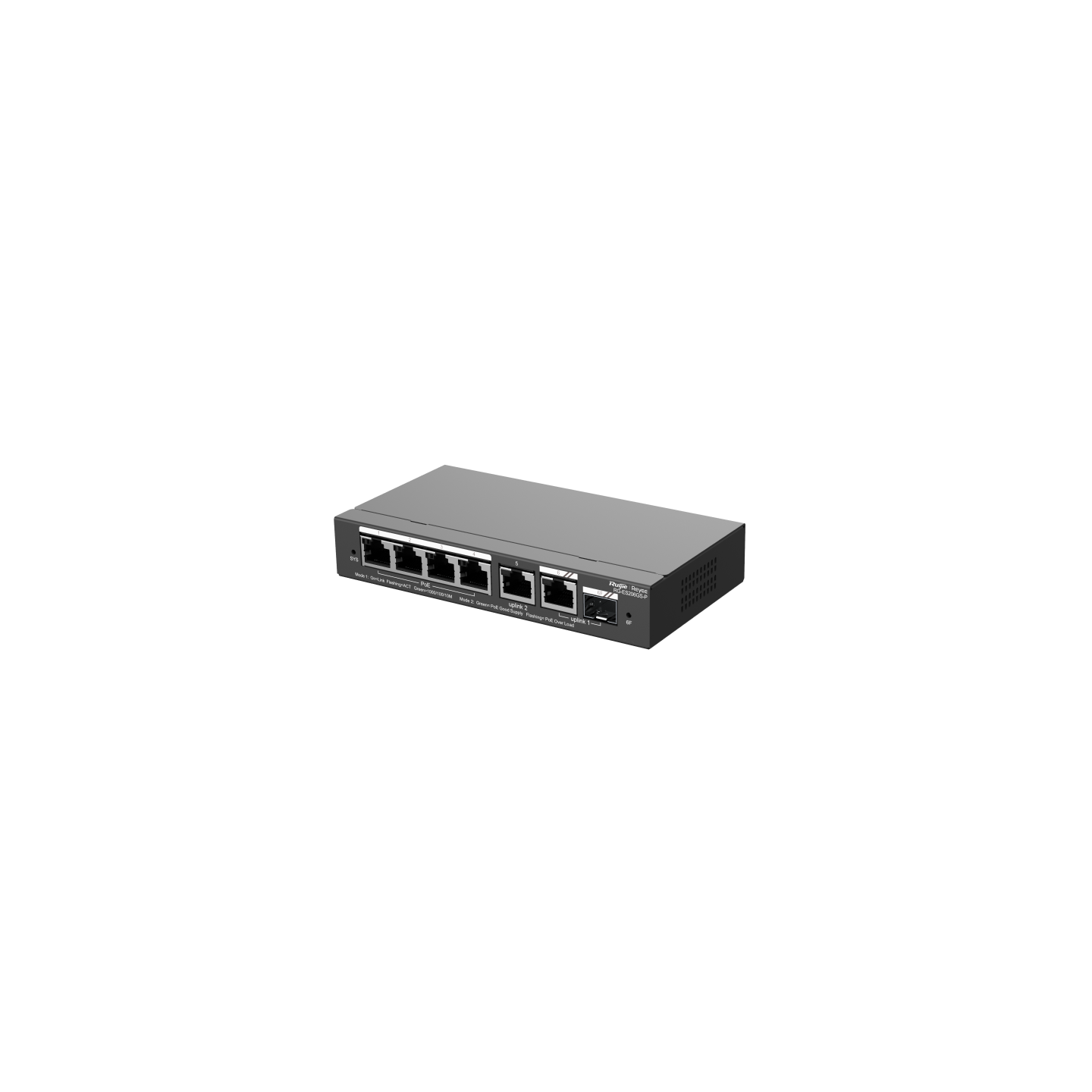

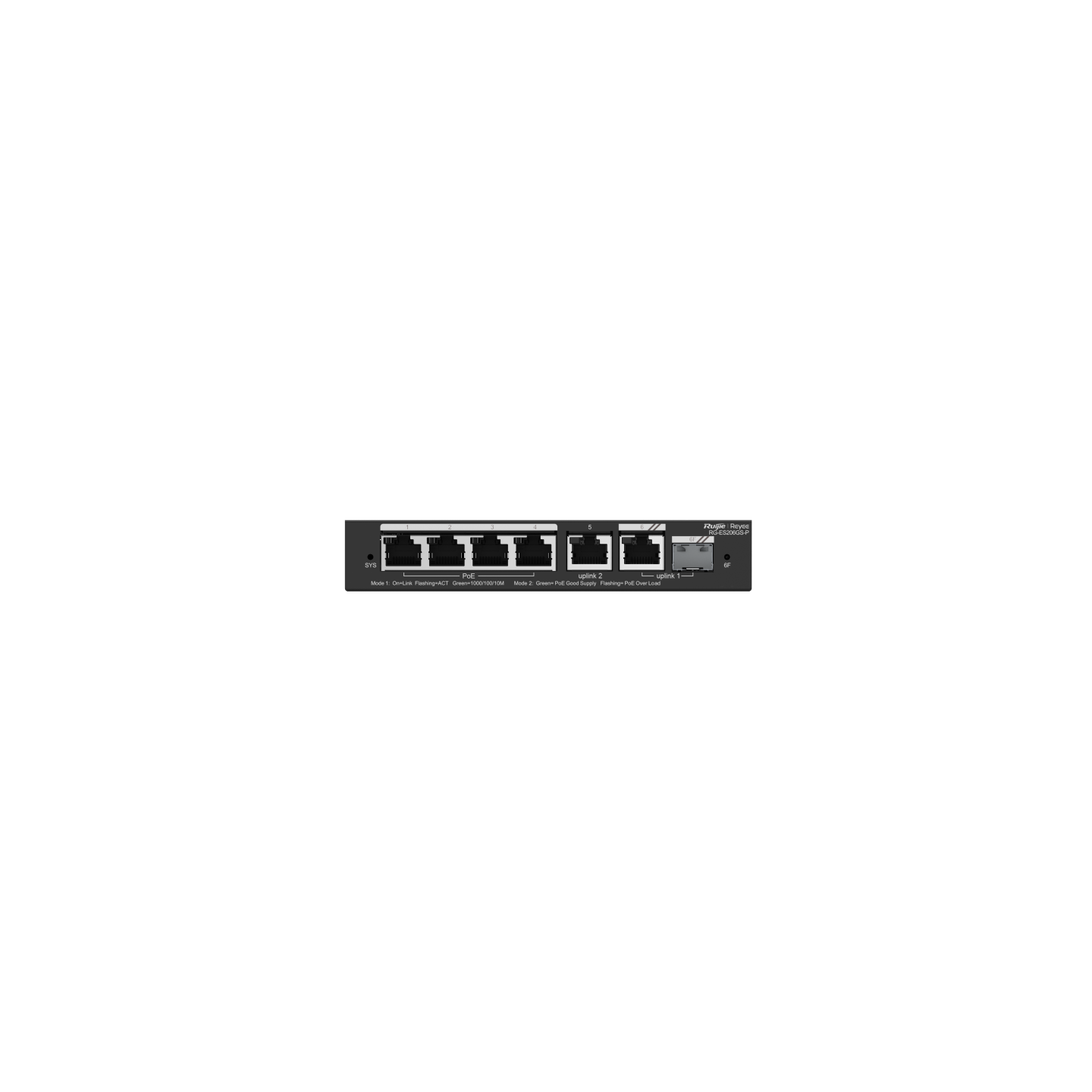

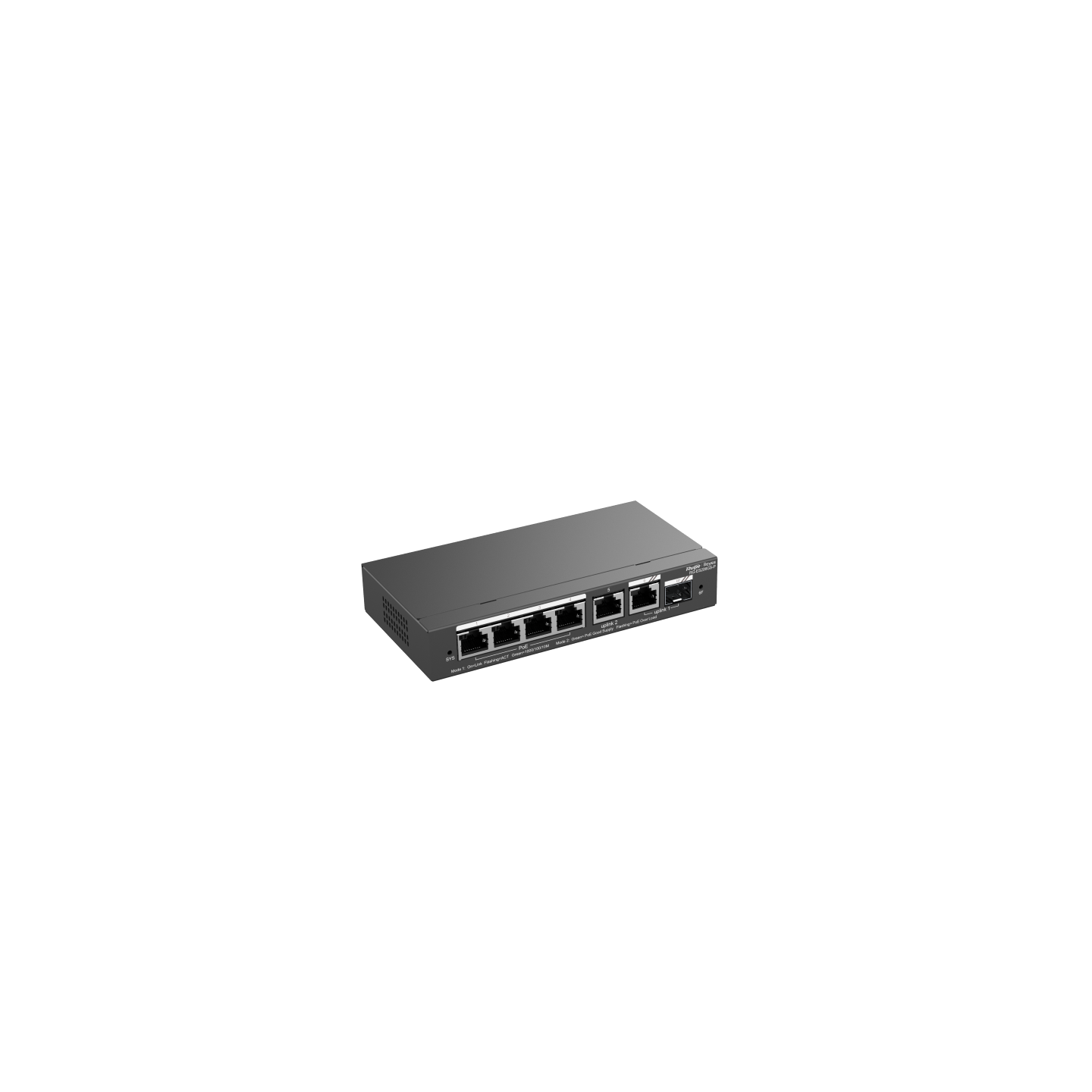

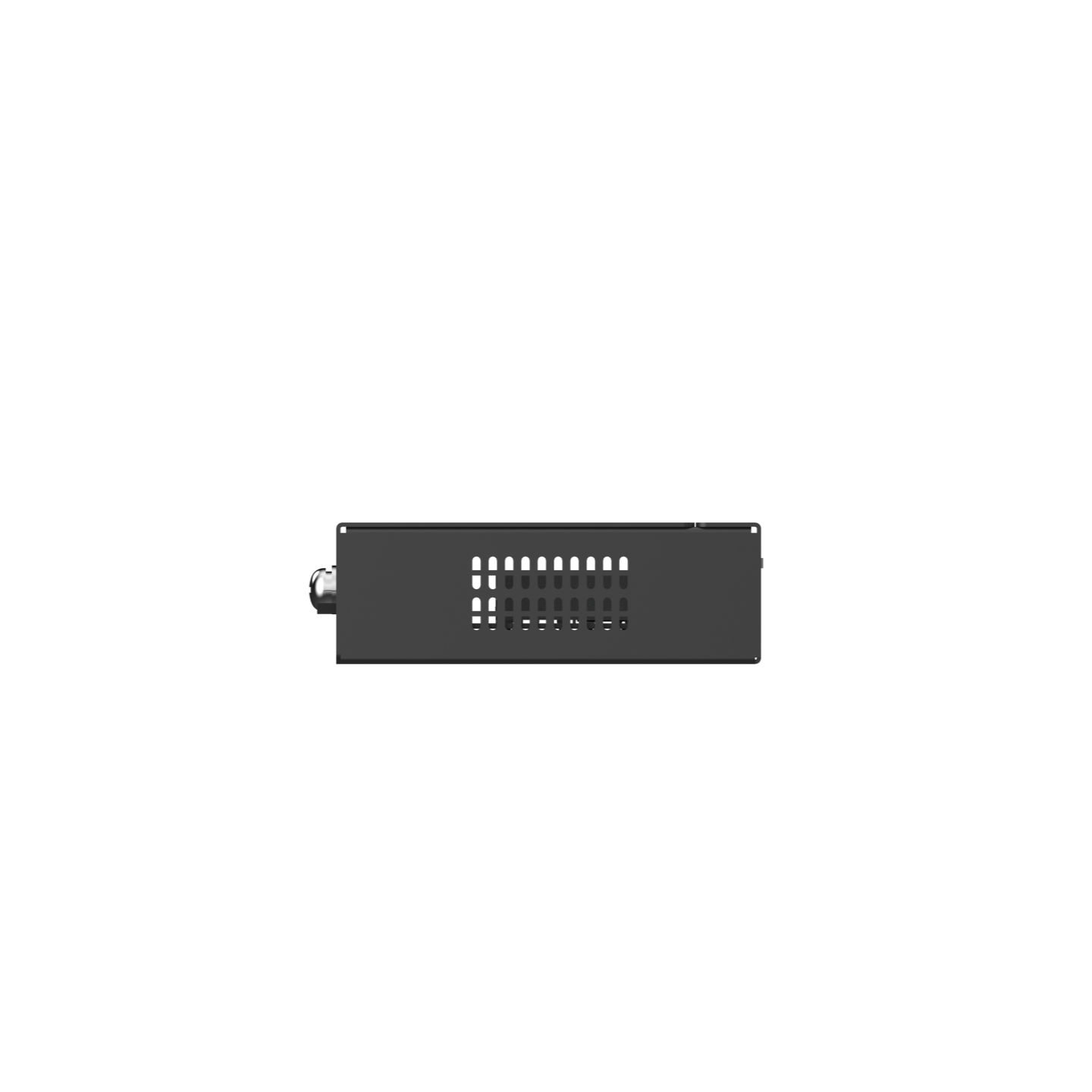

- Device: RG-ES206GC-P
- Power Supply: Power Adapter
- Quick Start Guide: 1
- Warranty Card: 1
- Accesories: –
- Package Weight: 0.79 kg
- Package Dimension (w x d x h): 249 mm x 217 mm x 62 mm
