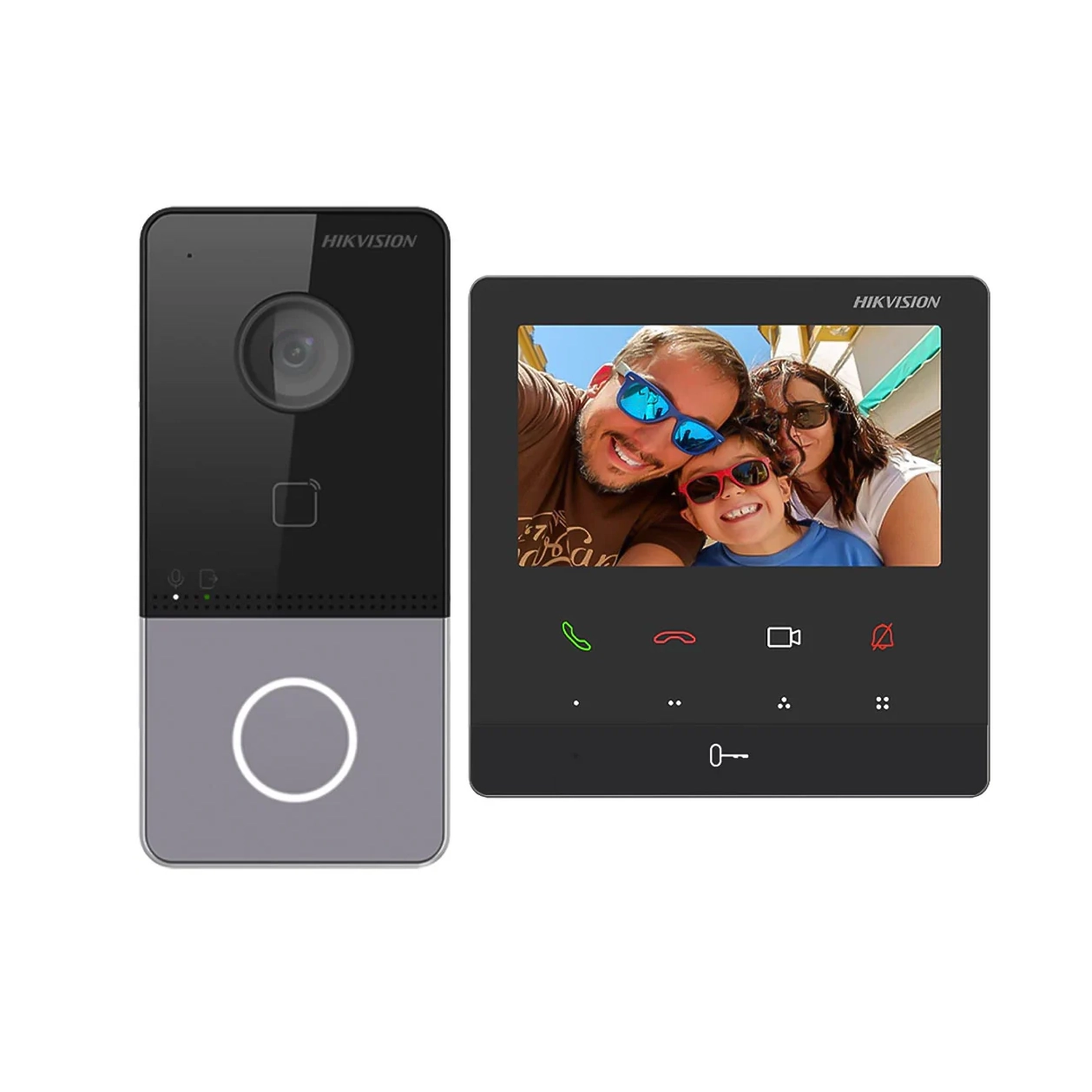

Door Station
System Parameters
| Operation System | Linux |
| Processor | Embedded high performance processor |
| RAM | 256 MB |
| ROM | 32 MB |
Video Parameters
| Supplement Light | IR light, up to 3 m |
| Resolution | Main Stream: 1920 × 1080p, 1280 X 720p Sub Stream: 1280 X 720p, 640 x 480p |
| Lens | 2MP HD camera |
| Field of View | Horizontal: 131°, Vertical: 78° |
| Video Compression | H.264; H.265; MJPEG |
Audio Parameters
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G711U, G711A, G726, AAC_LC, AAC_LD, OPUS, G722.1 |
Capacity
| User Capacity | 2000 |
| Linked Indoor Station | 16 |
| Card Capacity | 10000 |
Device Interfaces
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm Input | 4 |
| Lock Control | 1 relay, Max. 30 VDC 2 A |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
General
| Button | 1 physical button |
| Power Supply | IEEE802.3af, standard PoE; 12 VDC |
| Power Consumption | ＜ 10 W |
| Working Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity | 10% to 95% (non-condensing) |
| Dimension | 138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″) |
| Installation | Surface mounting |
| Protection Level | IP65 |
| Net Weight | 0.190 kg |
| Gross Weight | 0.414 kg |
Indoor Station
System Parameters
| Operation System | Embedded Linux operation system |
| Processor | Embedded processor |
| RAM | 128 MB |
| ROM | 16 MB |
Display Parameters
| Screen Size | 4.3-inch colorful TFT screen |
| Display Resolution | 480 × 272 |
| Operation Method | Capacitive touch screen with 9 touch buttons |
Audio Parameters
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.711 U, G.711 A |
Network Parameters
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | Wi-Fi 802.11 b/g/n, 2.4 GHz |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
General
| Button | 9 physical buttons |
| Power Supply | IEEE802.3af, Standard PoE; 12 VDC |
| Power Consumption | ≤ 4 W |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 95% (non-condensing) |
| Dimension (Option 1) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
| Dimension (Option 2) | 120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″) |
| Installation | Wall mounting, table mounting |
| Net Weight | 197.8 g |
| Gross Weight | 336.6 g |
| Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek |
