EZVIZ H90 Dual 2K+ Pan & Tilt Wi-Fi Outdoor Camera

Specifications
Model	CS-H90-R100-8H44WKFL
Camera
Image Sensor	1/3″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle	Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination	0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount	M12
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
IR Night Vision	30 m (98 ft)
Color Night Vision	Up to 40 m (131 ft) when two lenses point in the same direction
Video & Audio
Max Resolution	2K+ (2560 × 1440)
Frame Rate	Self-adaptive during network transmission
Video Compression	H.265 / H.264
H.265 Type	Main Profile
Video Bit Rate	Quad HD; Full HD; Standard adaptive bit rate
Audio Bit Rate	Self-Adaptive
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	WPA-PSK/WPA2-PSK
Transmission Rate	11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing	AP paring
Protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol
Wired Network	RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm	AI-powered human shape detection AI-powered vehicle shape detection Motion detection
Auto Tracking	Supports
Customized Alert Area	Supports
Two-way Talk	Supports
Preset Locations	Supports
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD card (max. 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions	-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade	Weatherproof Design
Power Supply	IP65 + 2h rainstorm
Power Consumption	MAX. 18W

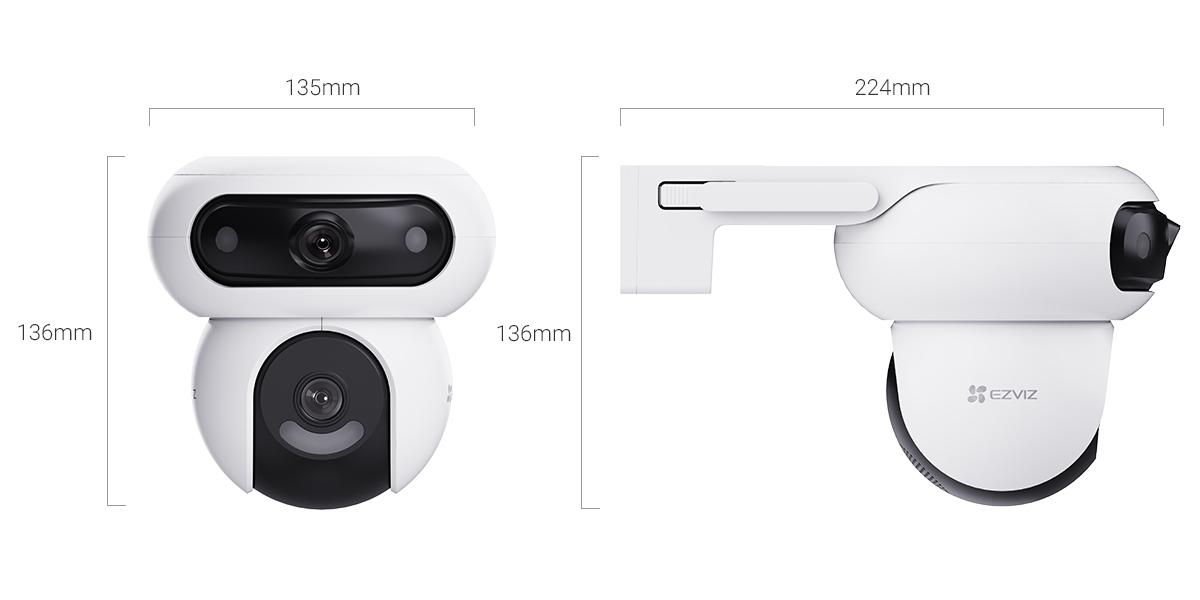

Dimensions	224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
Packaging Dimensions	255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)
Weight	Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz)
In the box
In the box	– H90 Dual 2K+ Camera
	– Power Adapter
	– Drill Template
	– Waterproof Kit
	– Screw Kit
	– Regulatory Information × 2
	– Quick Start Guide
Certifications
Certifications	CE / UL / WEEE / RoHS / REACH
