Key Specifications
Product Information
Product Type
- Product Type: Ceiling AP
Hardware Specifications
Wi-Fi Radio
- Radio design: Dual-radio, 4 spatial streams (2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO)
- Maximum wireless data rate: 1774 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 1201 Mbps
- 2.4 GHz wireless data rate: 573 Mbps
Antenna
- Antenna: 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
- Product dimensions (W x D x H): 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
- Color: White
- Weight: ≤ 0.55 kg (1.21 lbs.) (without packaging materials)
Port Specifications

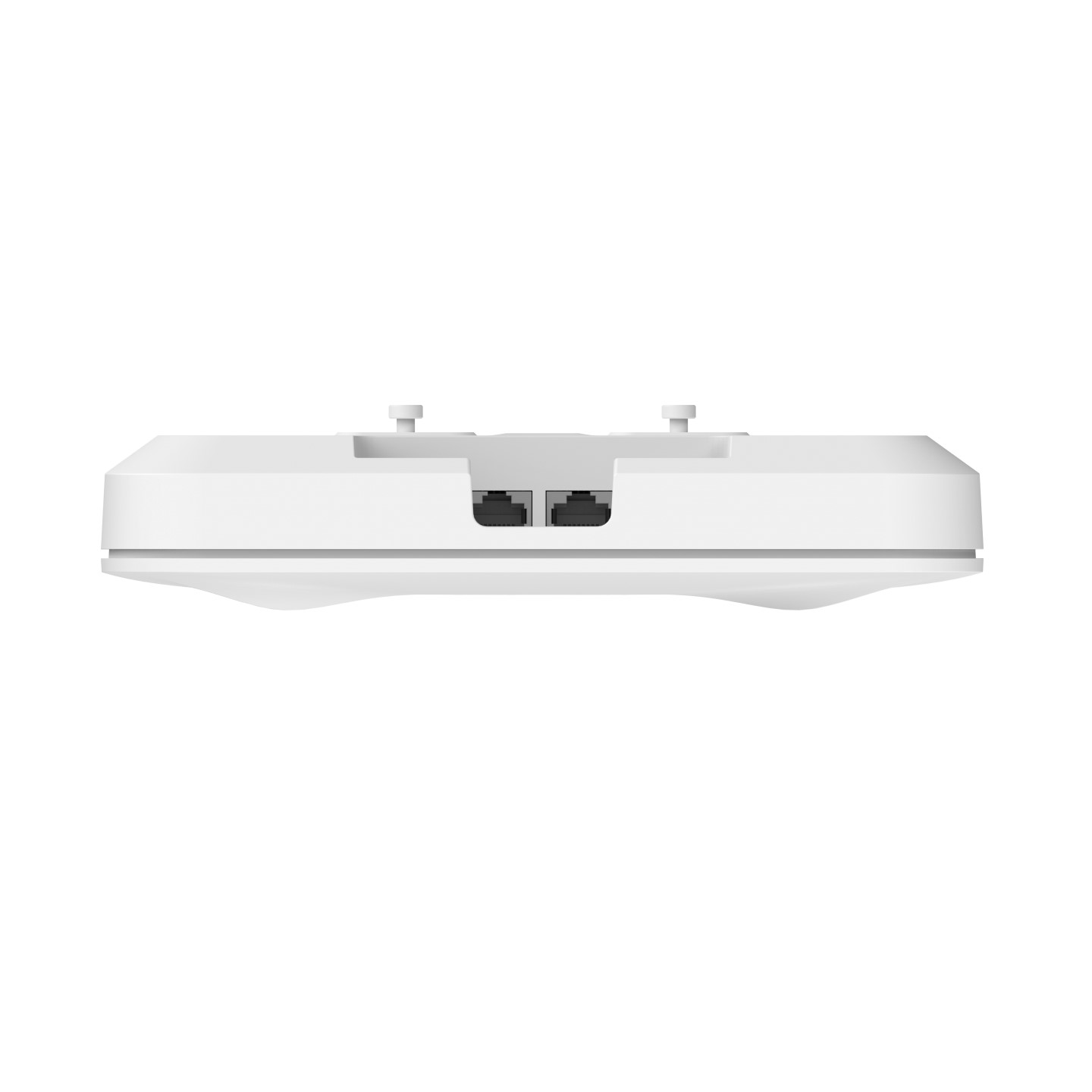

- Number of 10/100/1000BASE-T ports: 2
Power Supply and Consumption
- Power supply: DC power adapter, PoE/PoE+ (Note: If both are available, DC is preferred.)

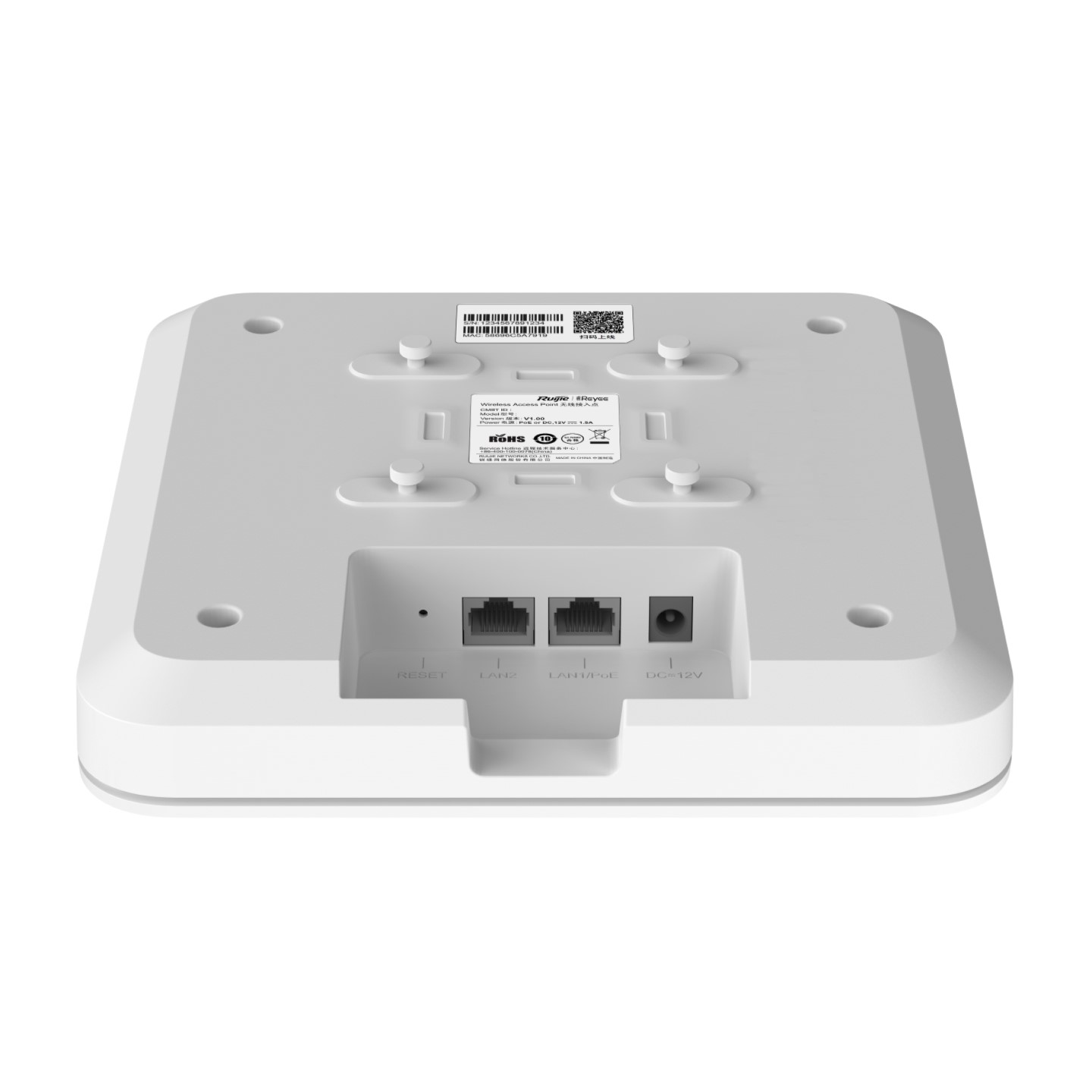

- Local power supply: Yes, one DC power connector (12 V, 1.5 A)
- Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.)
- PoE budget: No
- Maximum power consumption: 15.5 W
Environment and Reliability
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Mounting options: Ceiling/Wall
- IP rating: IP41
Software Specifications
WLAN
- Maximum number of associated wireless clients: 64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz enabled)
- Maximum number of devices that can be managed: 300
Order Information
- Mounting Bracket: 1
- Cross Pan Head Screw: 2
- Expansion Anchor: 2
- Quick Start Guide: 1
- Warranty Card: 1
- Package Weight: 0.83kg
- Package Dimension (w x d x h): 222 mm x 220 mm x 68 mm
