EZVIZ CS-HB8C/SP 4G Solar Outdoor Camera

Specifications
model	CS-HB8c/SP (4MP,W4GA)
Camera
Image Sensor	1/3″ 4-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	4mm@ F1.6 Diagonal angle: 90° Horizontal angle: 75° Vertical angle:40°
PT Angle	Pan: 340°, Tilt: 80°
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision	15 m
Video & Audio
Max Resolution	2K+ (2560 × 1440)
Frame Rate	15fps; Self-adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra-HD; Full HD; Hi-Def; Adaptive bit rate
Audio Bit Rate	Self-adaptive
Max. Bitrate	4 Mbps
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11 ax
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	4 Mbps
Frequency Bands	IN LTE-FDD: B1/B3/B5/B8 IN LTE-TDD: B34/B38/B39/B40/B41 EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 EU LTE-TDD: B38/B40/B41 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LA LTE-TDD: B38/B40/B41
Function
Smart Alarm	AI-powered human shape detection AI-powered vehicle shape detection
Two-Way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD card (max. 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade	IP65
Power Supply	DC 5 V / 2 A (Adapter needs to be purchased separately)
Battery Capacity	5,200 mAh
Power Consumption	Max.10 W

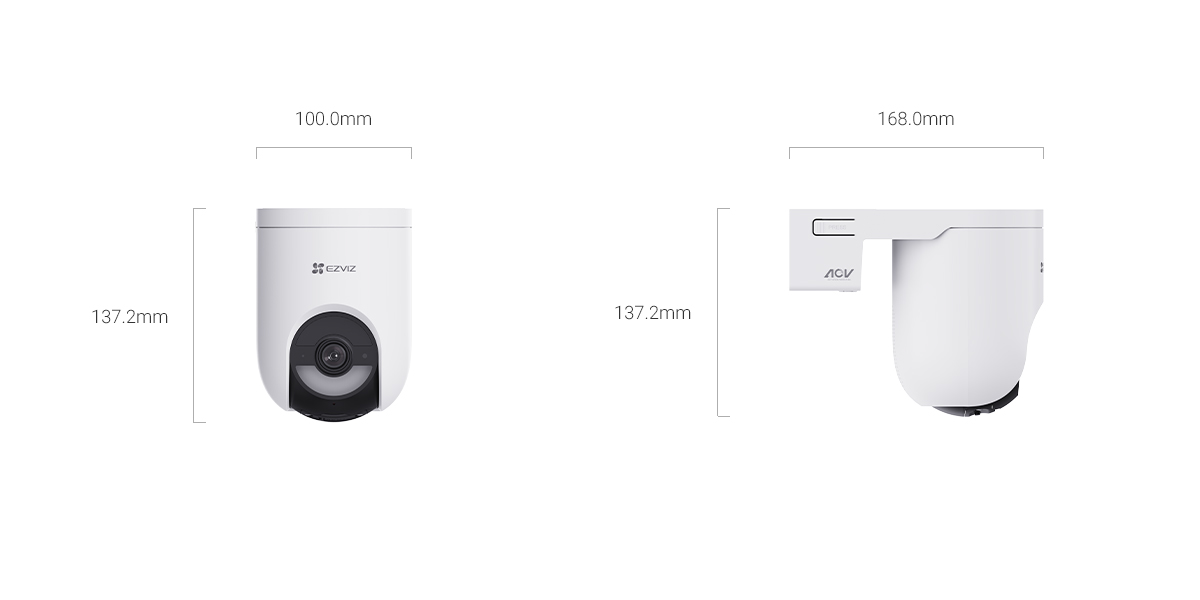

Product Dimensions	168 × 100 × 137.2 mm (6.61 × 3.94 × 5.40 inch)
Packaging Dimensions	205 × 145 × 194 mm (8.07 × 5.70 × 7.64 inch)
Product Weight	660 g (23.28 oz)
Weight with Package	1120 g (39.50 oz)
Specifications
Model	CS-PSP5-R100-3M
Performance Parameter
Power Voltage	5.7 V
Power Current	877 mA
Open Circuit Voltage	6.9 V
Short Circuit Current	0.92 A
Max. Power	5 W
Interface	Type-C
Solar Cell Efficiency	≥ 23.5%
Operating Conditions	-20 °C to 60 °C (-4 °F to 140 °F) Humidity 90% or less (non-condensing)
IP Grade	IP65
Mechanical Data
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meter
Product Dimensions	210 × 154 × 33 mm (8.27 × 6.06 × 1.30 inch)
Packaging Dimensions	225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch)
Weight	Net Weigh: 286 g (10.09 oz) with package: 656 g (23.14 oz)
In the box
In the box	– HB8 Lite 4G Camera
	– Solar Panel 5W
	– Drilling Template
	– Adjustable Mounting Bracket
	– Screw Kit × 2
	– Power Cable
	– Regulatory Information × 3
	– Quick Start Guide × 2
Certifications
Certifications	CE / REACH / WEEE / RoHS
