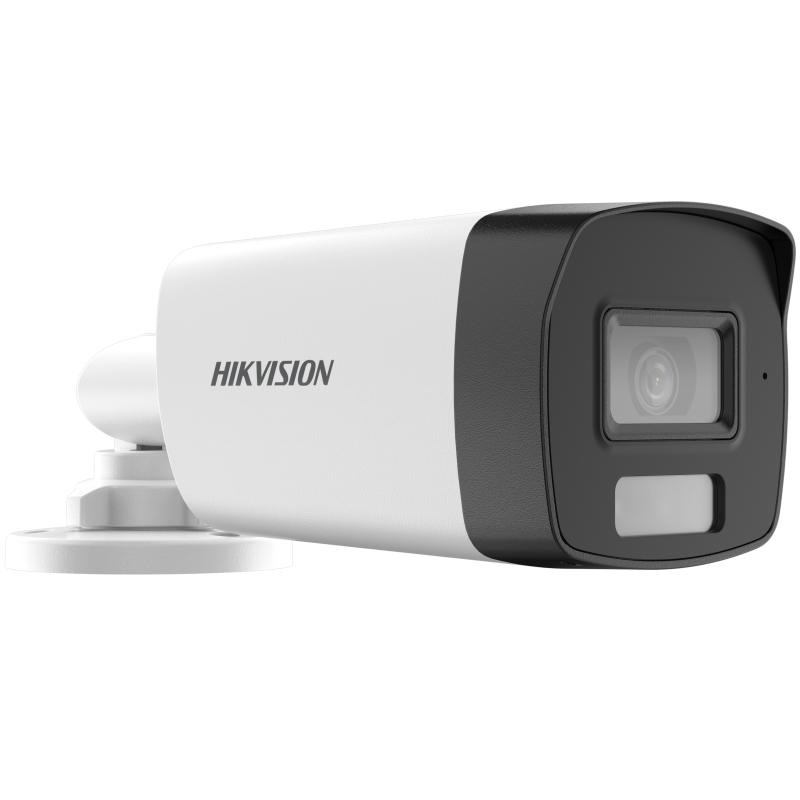

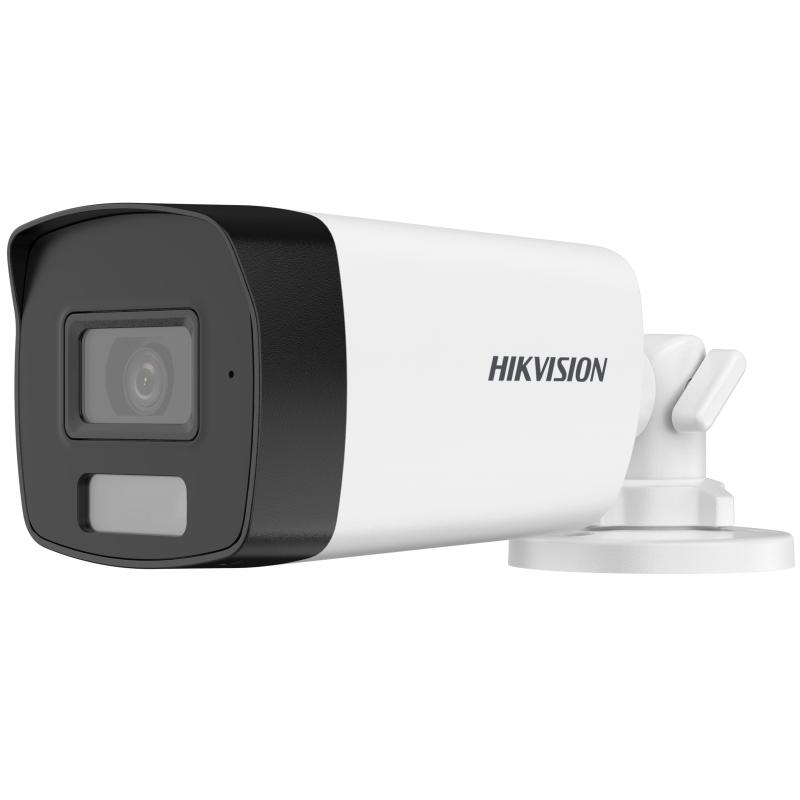

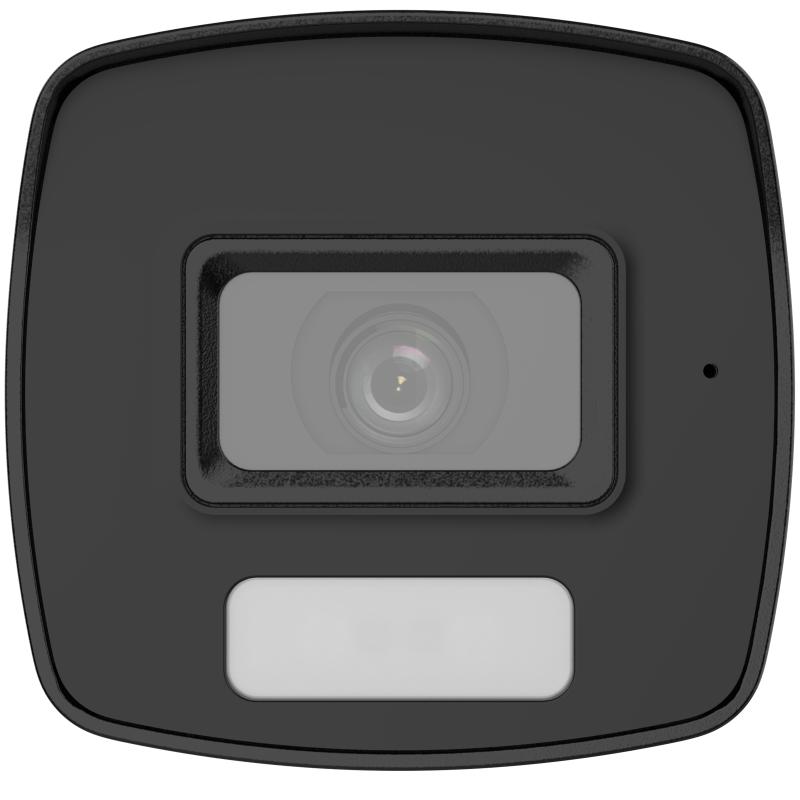

Camera
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
Lens
| Lens Type | 2.8 mm, 3.6 mm and 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° 6 mm: horizontal FOV: 49.2°, vertical FOV: 28.3°, diagonal FOV: 56.1° |
| Lens Mount | M12 |
Microphone
| Pickup Distance | In a radius of 5 m |
| Amount | 1 |
Illuminator
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m White Light: Up to 40 m |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080P @ 30 fps, 1080P @ 25 fps AHD: 1080P @ 30 fps, 1080P @ 25 fps CVI: 1080P @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global |
| White Balance | Auto/Manual |
| AGC | Yes |
Interface
| Video Output | Switchable TVI/AHD/CVI/CVBS |
General
| Material | Front cover: Metal Main body: Plastic |
| Dimension | 216.6 mm × 78.9 mm × 75.4 mm (8.53″ × 3.10″ × 2.97″) |
| Weight | Approx. 339 g (0.75 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 4.8 W |
