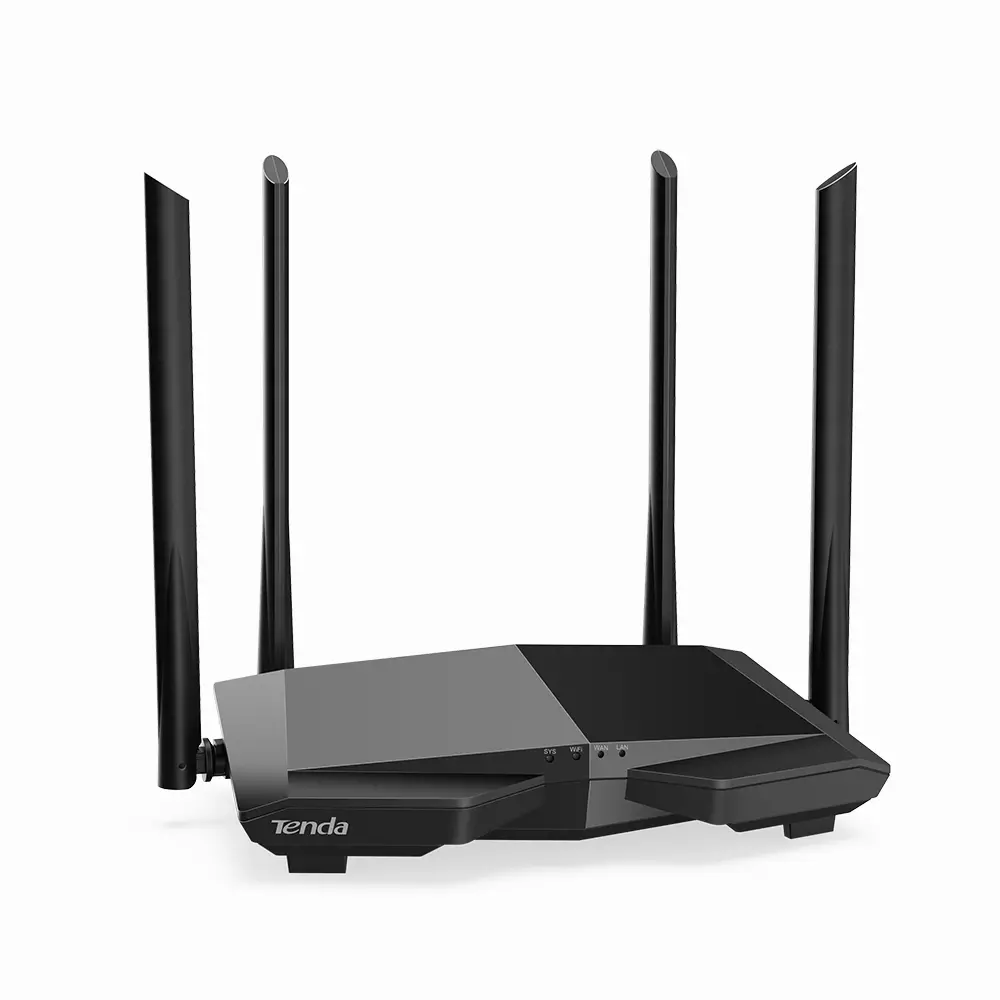

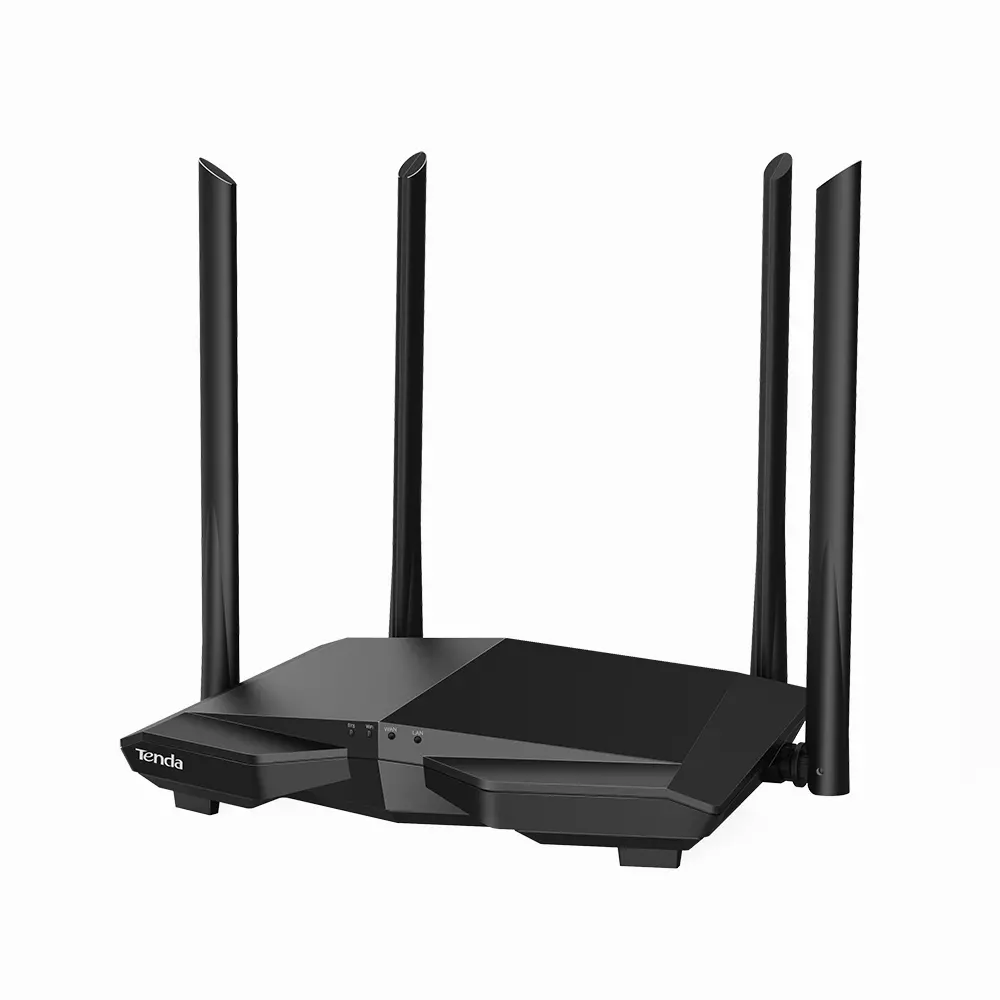

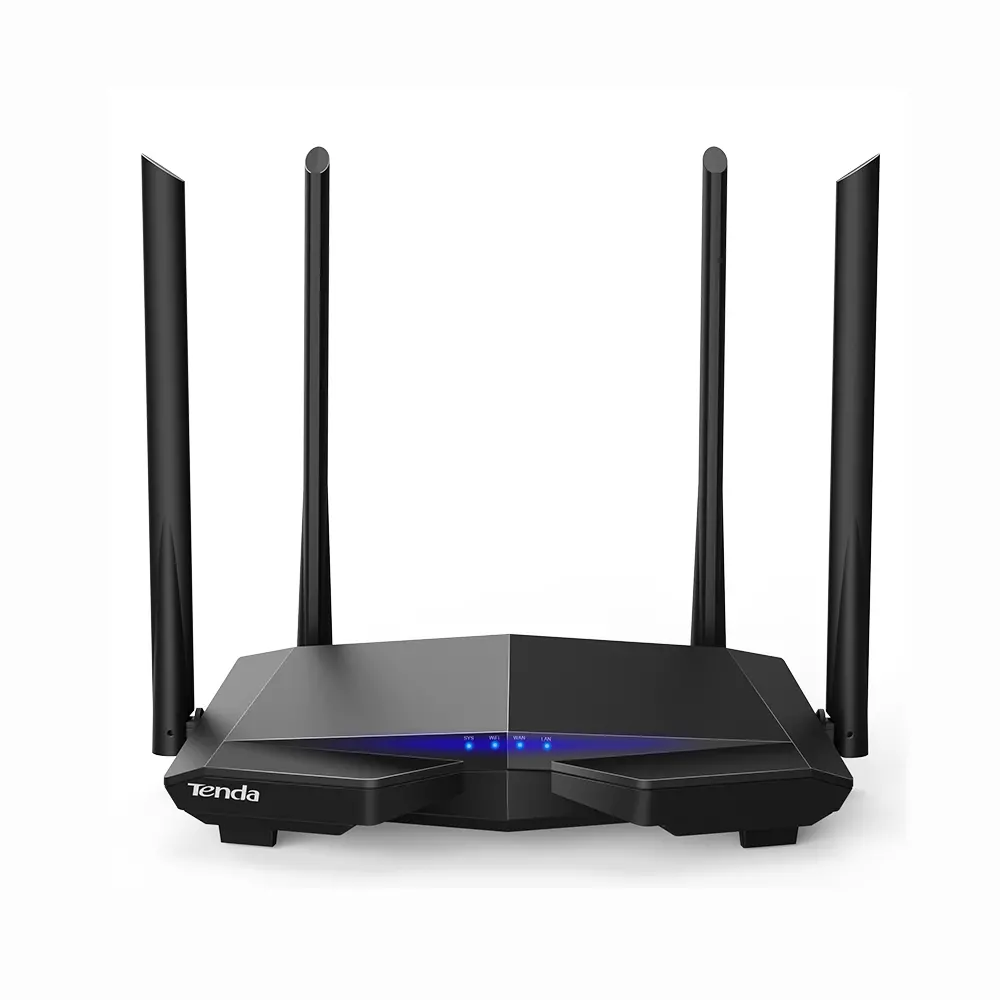

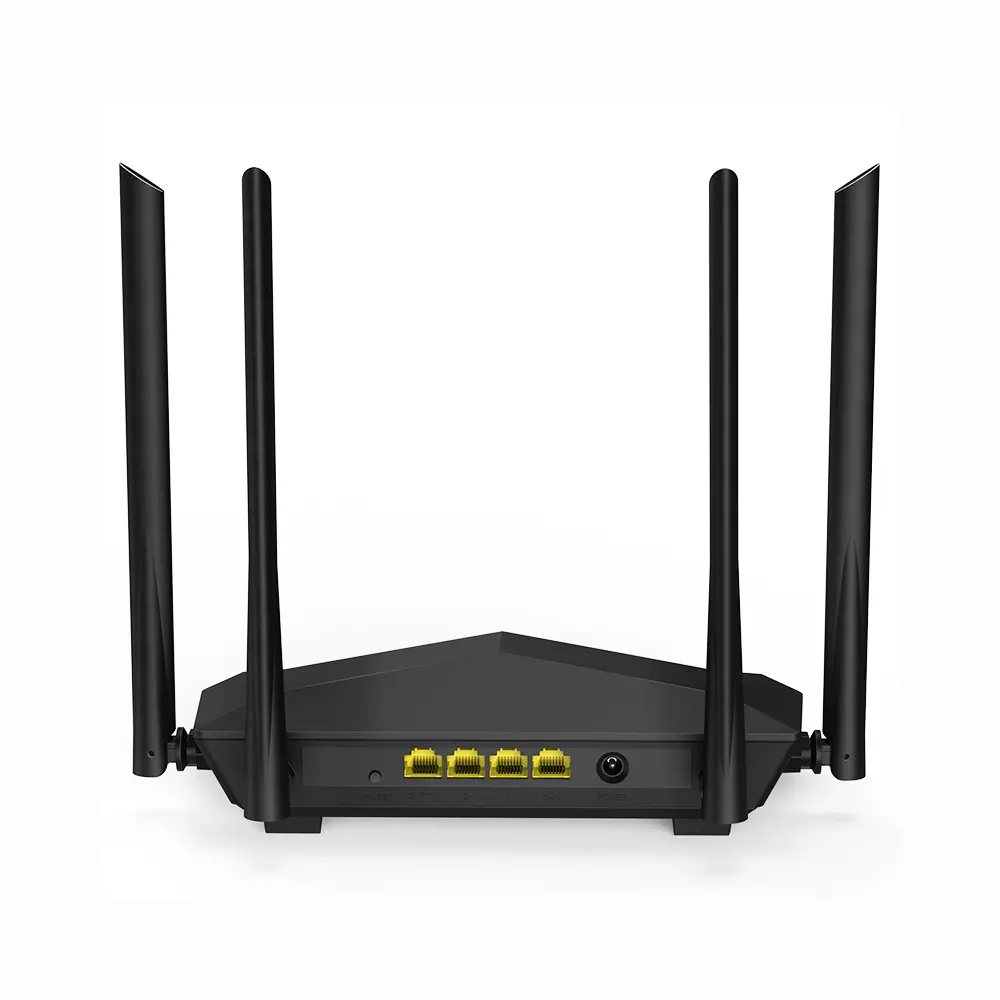

Wi-Fi Router
Hardware
Standard & Protocol:
IEEE 802.3, IEEE 802.3u
CPU:
600 MHz
RAM:
32 MB
Interfaces:
1 × 10/100 Mbps WAN port
3 × 10/100 Mbps LAN ports
Antenna:
4 × 6 dBi external antennas
Button:
1 × Wi-Fi / Reset button
Power:
Input: 100–240V ~ 50/60Hz
Output: DC 9V ⎓ 1A
LED Indicator:
SYS × 1, WiFi × 1, WAN × 1, LAN × 1
Dimension:
220 × 141.5 × 49 mm (L × W × H)
Wireless
Wireless Standard:
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate:
5GHz: Up to 867 Mbps
2.4GHz: Up to 300 Mbps
Frequency:
CE:
-
2.4 GHz: 2412–2472 MHz (CH1–CH13)
-
5 GHz: 5150–5250 MHz (CH36–CH64)
FCC:
-
2.4 GHz: 2412–2462 MHz (CH1–CH11)
-
5 GHz: 5150–5250 MHz (CH36–CH64), 5725–5825 MHz (CH149–CH165)
Transmission Power:
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
FCC: <30 dBm (2.4 GHz & 5 GHz)
Wireless Security:
WPA2-PSK
Wireless Security: Enable / Disable
Software / Features
Internet Connection Type:
PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)
Unify, Maxis, Maxis-special, Celcom, Digi
Network Protocol:
IPv4 & IPv6
Operating Mode:
Router Mode
AP Mode
Universal Repeater Mode (Client + AP, WISP)
Parental Control:
Client Filter
URL Filter
Time Limit
DHCP:
DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation
Virtual Server:
Port Forwarding, DMZ Host, UPnP
Firewall:
ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN
DDNS:
DynDNS, no-ip, oray, 88ip
VPN:
IPsec Pass Through
PPTP Pass Through
L2TP Pass Through
Special Features:
Guest Network
IPTV
Signal Adjustment
Basic Functions:
PPPoE Username / Password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda App
Dual-band in One
IPv6 Features Supported
Broadband Management
MAC Address Clone
Backup & Restore Configurations
Firmware Upgrade from Local
Others
Temperature:
Operating: 0℃ ~ 40℃
Storage: -40℃ ~ 70℃
Humidity:
Operating: 10% ~ 90% RH non-condensing
Storage: 5% ~ 90% RH non-condensing
Certification:
CE, FCC, RoHS
Package Contents:
Wi-Fi Router × 1
RJ45 Ethernet Cable × 1
Power Adapter × 1
Quick Installation Guide × 1
