Key Specifications
Product Information
Product Type
- Product Type: Outdoor AP
Hardware Specifications
Wi-Fi Radio
- Radio design: Dual-radio, 4 spatial streams (2.4 GHz: 2 x 2, MIMO; 5 GHz: 2 x 2, MIMO)
- Maximum wireless data rate: 1266 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 866 Mbps
- 2.4 GHz wireless data rate: 400 Mbps
Antenna
- Antenna: Integrated 2.4 GHz and 5 GHz: 2 external omnidirectional antennas
Dimensions and Weight

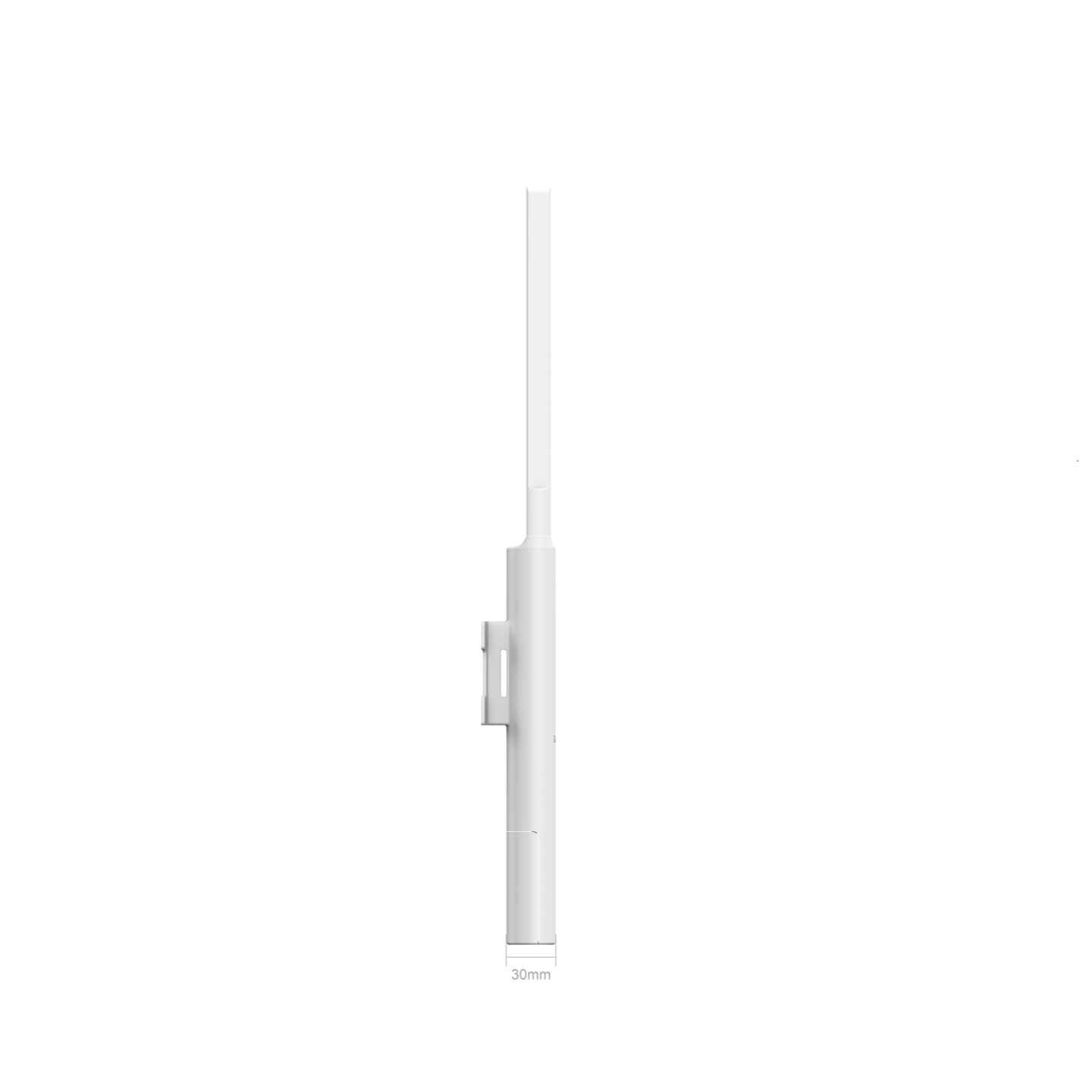

- Product dimensions (W x D x H): 50 mm x 35.7 mm x 220 mm (1.97 in. x 1.41 in. x 8.66 in.) (excluding the mounting bracket)
- antenna size: 185 mm (7.28 in.)
- Color: White
- Weight: ≤ 0.4 kg (0.88 lbs.) (without packaging materials)
Port Specifications

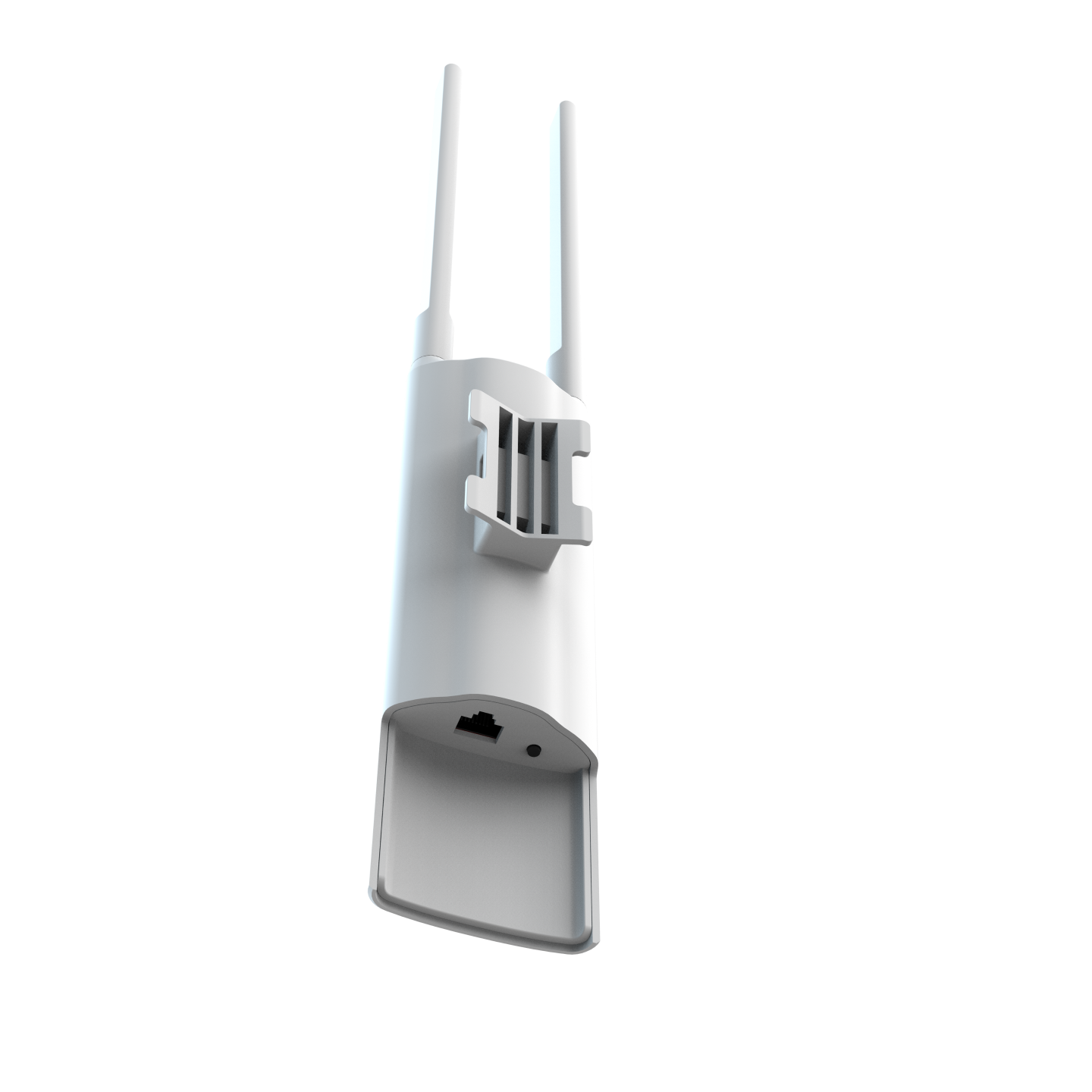

- Number of 10/100/1000BASE-T ports: 1
Power Supply and Consumption
- Power supply: PoE/PoE+
- Local power supply: No
- Dimensions of the DC connector: No
- PoE budget: No
- Maximum power consumption: 13.5 W
Environment and Reliability
- Operating temperature: –30°C to +65°C (–22°F to +149°F)

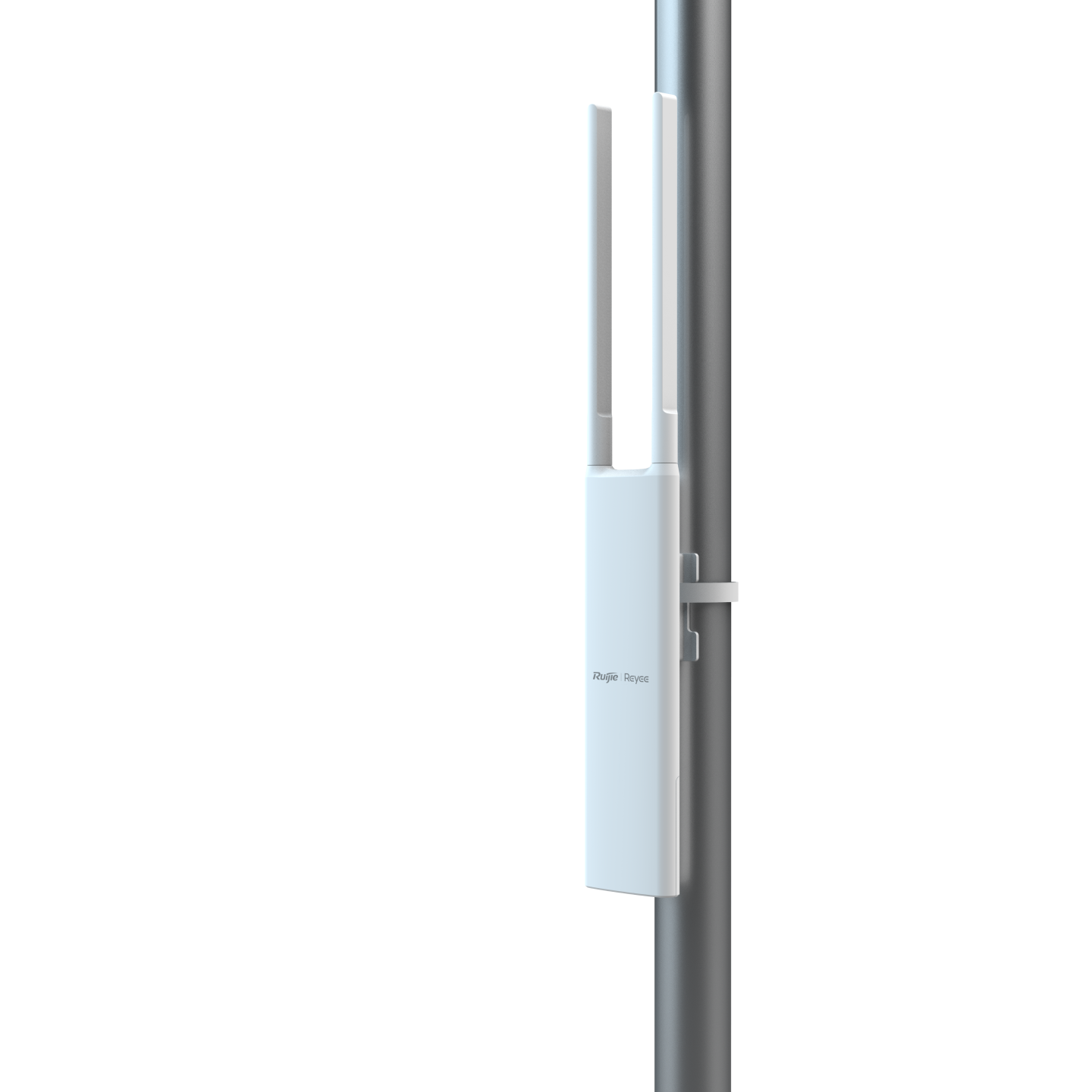

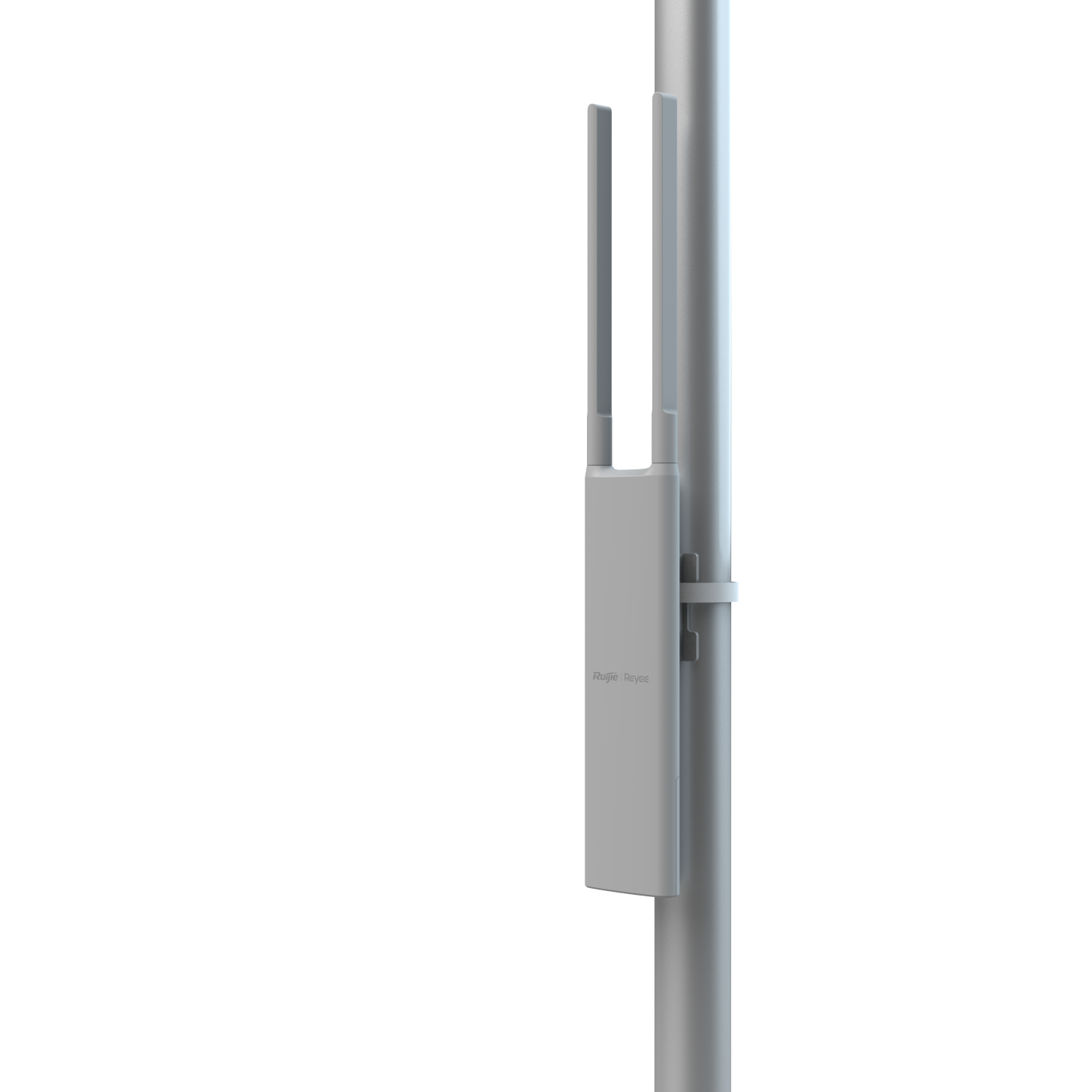

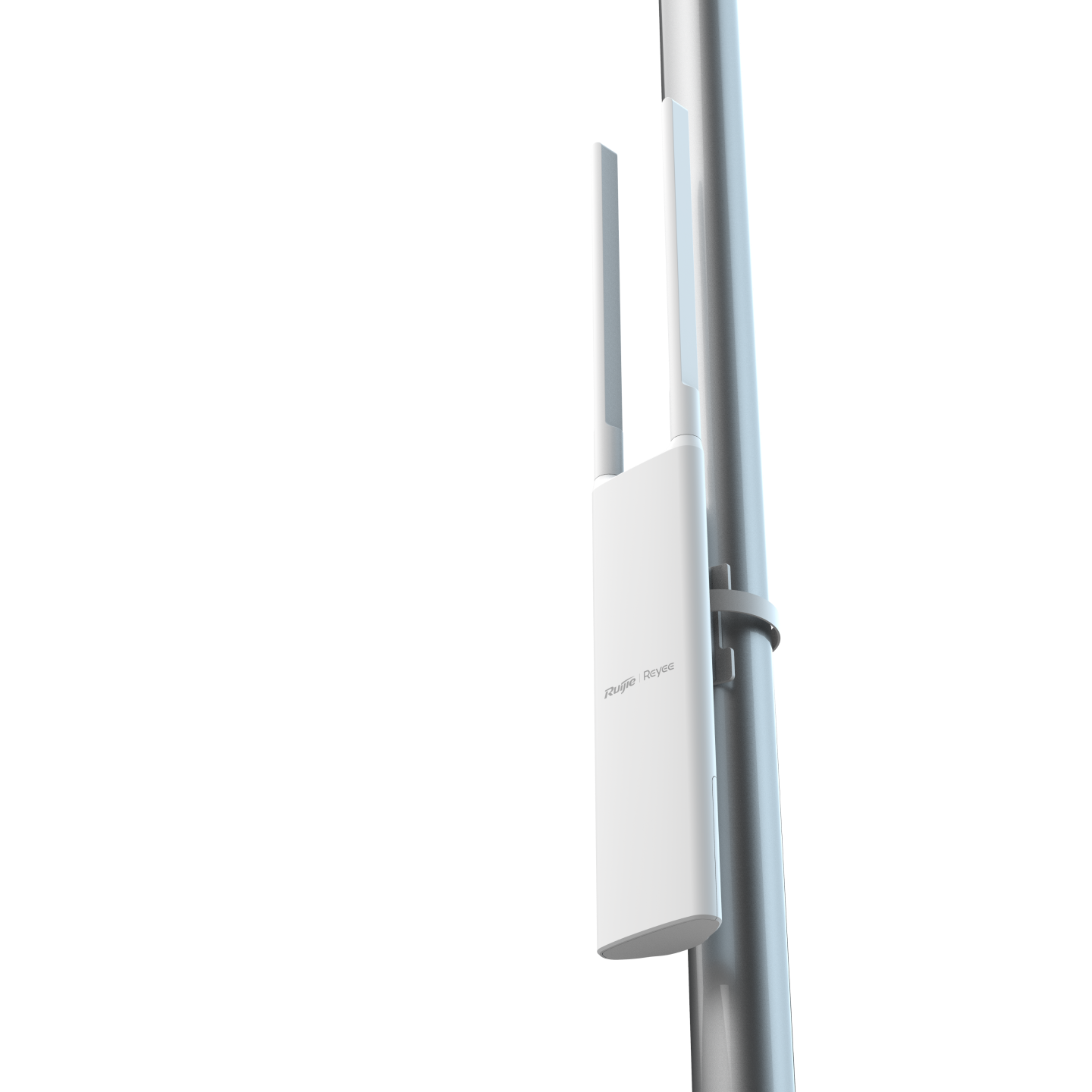

- Mounting options: Wall/Pole
- IP rating: IP65
Software Specifications
WLAN
- Maximum number of associated wireless clients: 64 (2.4 GHz), 110 (5 GHz), 110 (2.4 GHz and 5 GHz enabled)
- Maximum number of devices that can be managed: 300
