| Specifications | |
|---|---|
| Model | CS-L2S-11FCP |
| Design & Materials | |

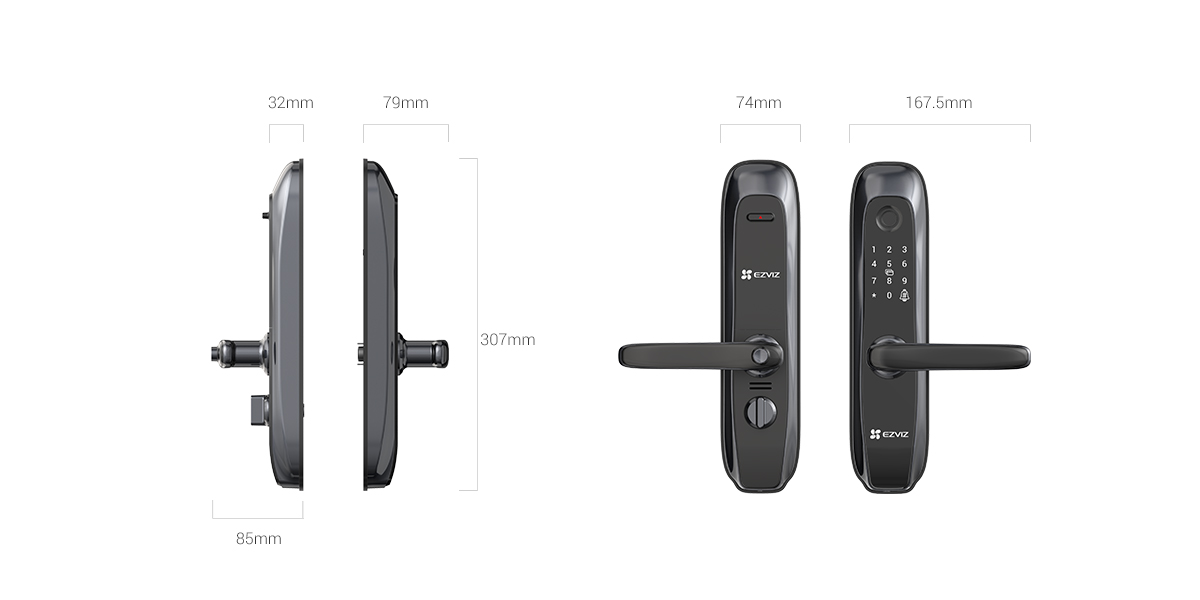

| Panel size | 307 × 74 × 32 mm (12.09 × 2.91 × 1.26 inch) |
| Panel material | Aluminum alloy |
| Lock body type | Mechanical lock body |
| Fingerprint sensor | Semiconductor |
| Built-in doorbell | Supports |
| Installation | |
| Operating temperature | -25 °C to 70 °C |
| Operation humidity | Humidity 95% or less (non-condensing) |
| Door compatibility | Supports using with wooden and iron doors |
| Lock face plate (installed on the door) | Standard 240 × 24 mm,double-holes, rectangular angle |
| Lock strike plate (installed on the door frame) | For a wooden door: standard 30 × 218 mm For an iron door: standard 30 × 260 mm |
| Supported door thickness | Use with doors that are 40 to 110 mm thick (standard wooden door of 40 to 55 mm; standard iron door of 55 to 75 mm) |
| Access Solution | |
| Door handle direction | Supports handle setup to be right-handed or left-handed |
| Fingerprints | Up to 50 fingerprints |
| Passwords | Up to 50 sets of passwords; supports anti-peeping virtual passwords; supports creating temporary passcodes via EZVIZ App |
| Proximity cards | Up to 50 EZVIZ door cards, with a recommended reading distance of 0 to 10 mm |
| Mechanical keys | Supports mechanical keys for emergency unlocking |
| Safety Specs | |
| Cylinder | C grade lock cylinder |
| Indoor lock | Supports |
| Handle safety lock | Supports |
| Anti-tamper alarm | Supports |
| Failed attempts auto-lock | Auto-disable for 3 minutes after 5 failed unlocking attempts |
| Power Specs | |
| Working power | Uses four 1.5V AA alkaline batteries |
| Time of use | Up to 1 year based on the usage of 10 openings per day |
| Low battery alarm | Supports |
| Emergency power supply | Micro-USB power bank |
| Connectivity & App Management | |
| Communication method | Zigbee 3.0 |
| User access management | Supports |
| Temporary password | Supports |
| Privacy mode | Supports |
| Real-time mobile alerts | Supports |
| Door status time log | Supports |
| In the box | |
| In the box | – L2S Smart Fingerprint Lock (Front Panel + Rear Panel) |
| – Lock Body | |
| – Gateway | |
| – AA Alkaline Batteries (4) | |
| – Proximity Cards (2) | |
| – Mechanical Keys (2) | |
| – Square Rod | |
| – Drilling Template | |
| – Standard Screw Kit | |
| – Lock Body Screw Kit | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / RoSH |
EZVIZ CS-L2S-11FCP Smart Fingerprint Lock – Keyless Home Security
-
Advanced Fingerprint Access: Supports up to 50 fingerprints for secure entry.
-
Multiple Entry Methods: Passwords, temporary codes, EZVIZ door cards, and mechanical keys.
-
Built-in Doorbell & Anti-Tamper: Provides alerts and auto-locks after failed attempts.
-
Durable Design: Aluminum alloy panel compatible with wooden and iron doors.
-
Long Battery Life: Runs up to 1 year on 4 AA batteries, with low battery alerts.
-
Smart Connectivity: Zigbee 3.0 with real-time mobile alerts and app management.
-
Easy Installation: Comes with lock body, gateway, cards, keys, and mounting kits.
Buy the EZVIZ CS-L2S-11FCP Smart Fingerprint Lock at Intexco. Secure your home with fingerprint access, passwords, proximity cards, and mechanical keys. Supports real-time mobile alerts, temporary passcodes, anti-tamper alarm, and works with wooden or iron doors. For price and order, contact via WhatsApp.
