Key Specifications
Product Information
Product Type

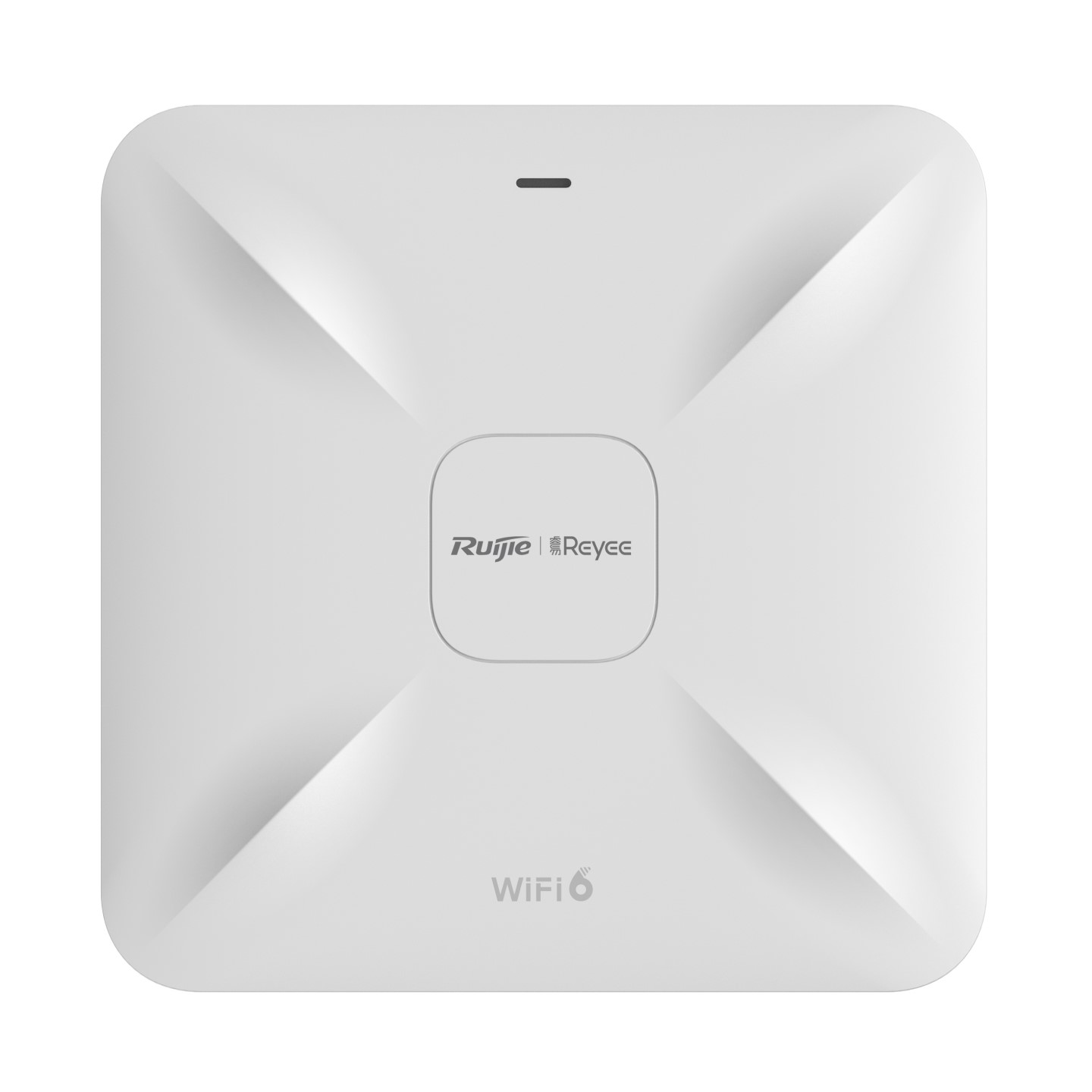

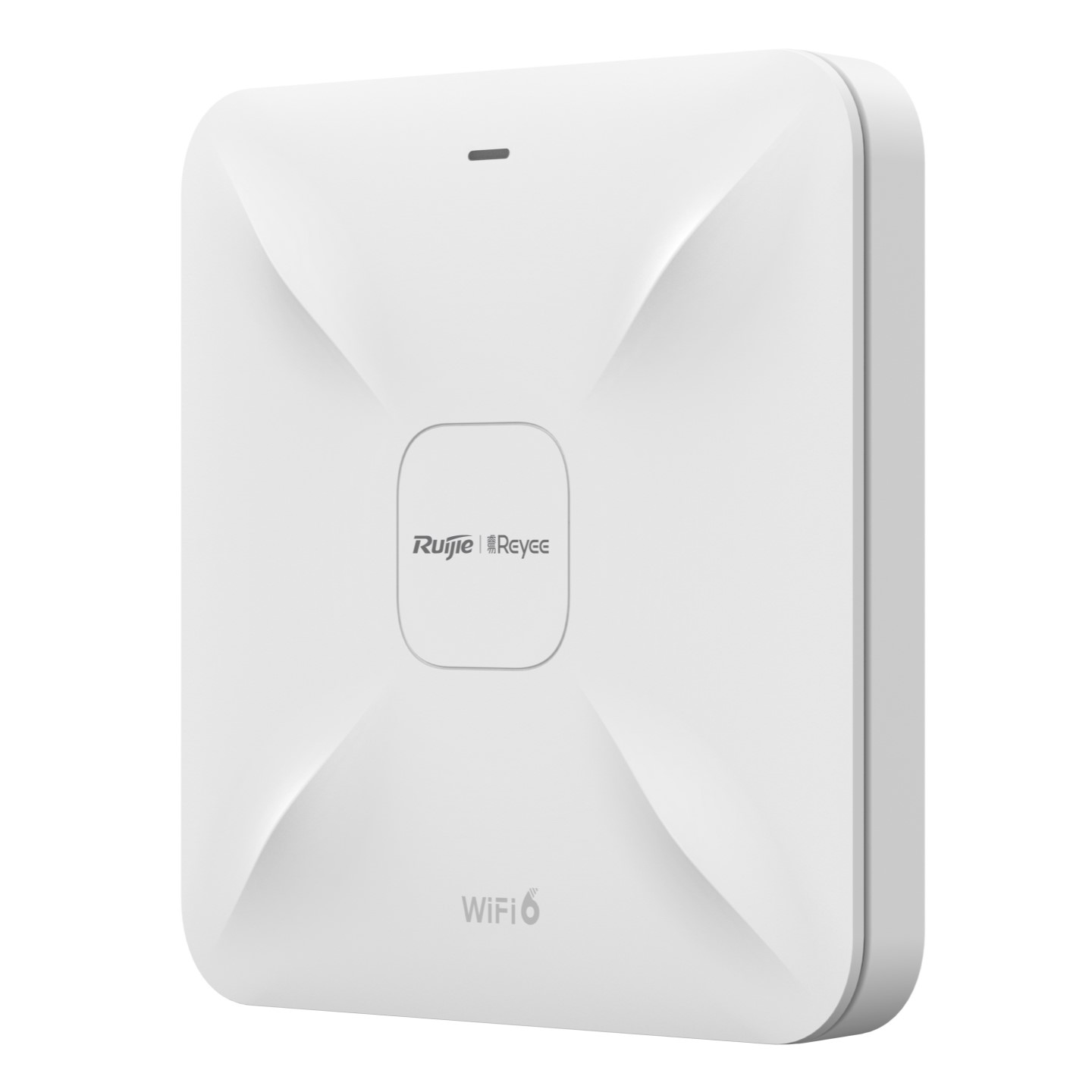

- Product Type: Ceiling AP
Hardware Specifications
Wi-Fi Radio
- Radio design: Dual-radio, 8 spatial streams (2.4 GHz: 4 x 4, MIMO; 5 GHz: 4 x 4, MU-MIMO)
- Maximum wireless data rate: 3201 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 2401 Mbps
- 2.4 GHz wireless data rate: 800 Mbps
Antenna
- Antenna: 2.4 GHz: 4 built-in omnidirectional antennas; 5 GHz: 4 built-in omnidirectional antennas
Dimensions and Weight
- Product dimensions (W x D x H): 220 mm x 220 mm x 35 mm (8.66 in. x 8.66 in. x 1.38 in.) (excluding the mounting bracket)
- Color: White
- Weight: ≤ 0.55 kg (1.21 lbs.) (without packaging materials)

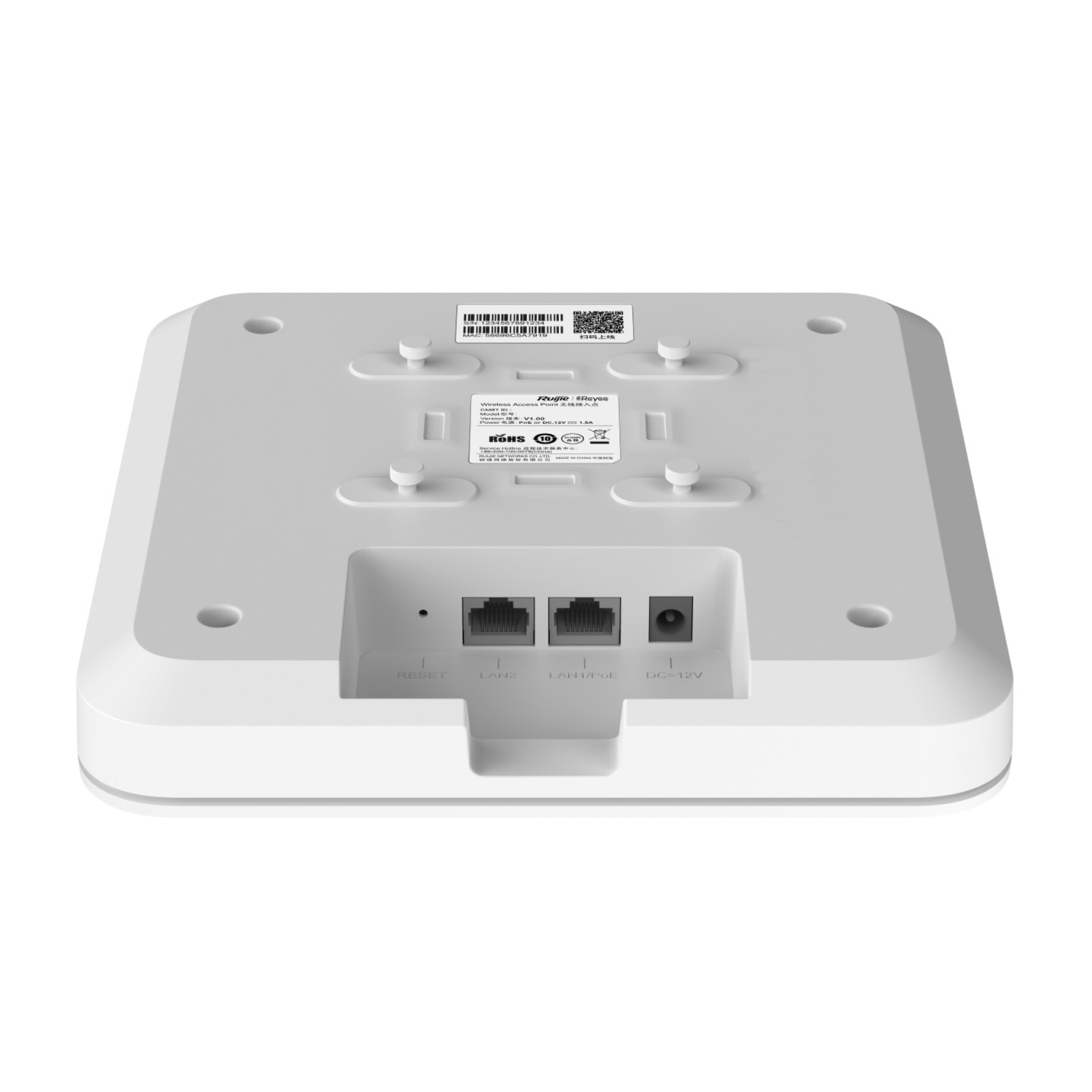

Port Specifications
- Number of 10/100/1000BASE-T ports: 1
- Number of 10/100/1000/2500BASE-T ports: 1
Power Supply and Consumption
- Power supply: DC power adapter, PoE+ (Note: If both are available, DC is preferred.)
- Local power supply: Yes, one DC power connector (12 V, 2.5 A)
- Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.)
- PoE budget: No
- Maximum power consumption: 25.4 W
Environment and Reliability
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Mounting options: Ceiling/Wall
- IP rating: IP41
Software Specifications
WLAN
- Maximum number of associated wireless clients: 64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz enabled)
- Maximum number of devices that can be managed: 300
Order Information
- Mounting Bracket: 1
- Cross Pan Head Screw: 2
- Expansion Anchor: 2
- Quick Start Guide: 1
- Warranty Card: 1
- Package Weight: 1.43kg
- Package Dimension (w x d x h): 290 mm x 290 mm x 71 mm
