| Specifications | |
|---|---|
| Model | CS-H7c-R100-8G44WF |
| Camera | |
| Resolution | Dual 2K+ Resolution |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Fixed Lens | 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical) |
| PT Lens | 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
| Network | |
| Smart Alarm | Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Interface | |
| Storage | Micro SD card slot (Max. 512G) |
| Power | TYPE-C |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
| Frequency Range | 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
| Channel Bandwidth | 2.4GHz Supports 20MHz 5GHz Supports 80MHz |
| Security | WPA-PSK, WPA2-PSK, WPA3-Personal |
| Transmission Rate | 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
| Output Power(EIRP) | 20 dBm |
| Antenna Gain | 2.56dBi@2.48GHz，3.18dBi@5.22GHz |
| General | |
| Operating Conditions | -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing) |
| Power Consumption | 8W max |
| Power Supply | DC 5V/2A |
| IR Range | MAX. 10 meters (32.81ft) |

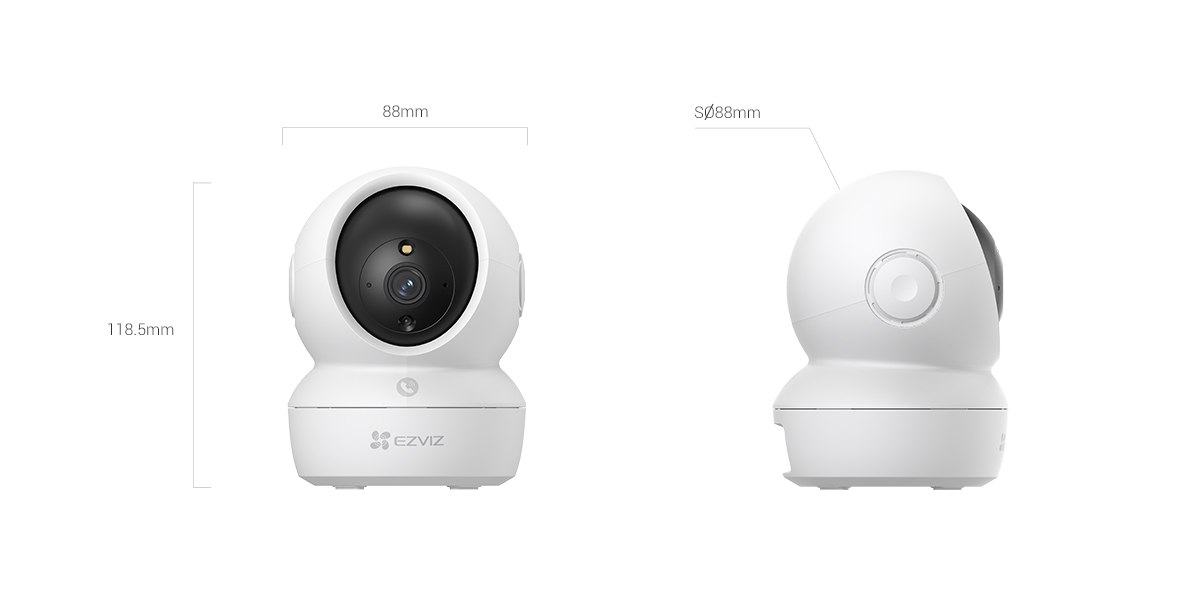

| Dimensions | 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in) |
| Package Dimensions | 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in) |
| Net Weight | 270 g (9.52 oz) |
| Bare Weight | 499 g (17.60 oz) |
| In the box | |
| In the box | – Camera (x1) |
| – Power Adapter (x1) | |
| – Power Cable (x1) | |
| – Drill Template (x1) | |
| – Mounting Plate (x1) | |
| – Screw Kit (x1) | |
| – Regulatory Information (x1) | |
| – Quick Start Guide (x1) | |
| Certifications | |
| Certifications | CE / UKCA / WEEE / RoHS / REACH / UL |
EZVIZ H7c Dual 2K + 2K Dual-Lens Pan & Tilt Wi-Fi Security Camera
-
Dual 2K+ Resolution: 2560×1440 for crisp, detailed video at 30 fps.
-
Wide-Angle & PT Lens: 2.8 mm lens for broad view, 6 mm PT lens for focused coverage.
-
Smart Detection: Motion, human shape, loud noise, and patrol mode alerts.
-
Night Vision: IR up to 10 m with 3D DNR and digital WDR for clear low-light footage.
-
Flexible Storage: MicroSD support up to 512 GB and cloud-ready.
-
Reliable Connectivity: Dual-band Wi-Fi 2.4/5 GHz with WPA3 & wired RJ45 option.
-
Compact & Efficient: Operates -10 °C to 45 °C, max 8 W, includes full mounting kit.
Buy the EZVIZ H7c Dual 2K+ 2K Dual-Lens Pan & Tilt Wi-Fi Camera for advanced indoor security. Dual lenses deliver wider coverage with sharp 2K video. Available at Intexco. Contact via WhatsApp.
