| Specifications | |
|---|---|
| Model | CS-DL03 |
| Technical Specification | |
| Product material | Aluminum + Plastic |

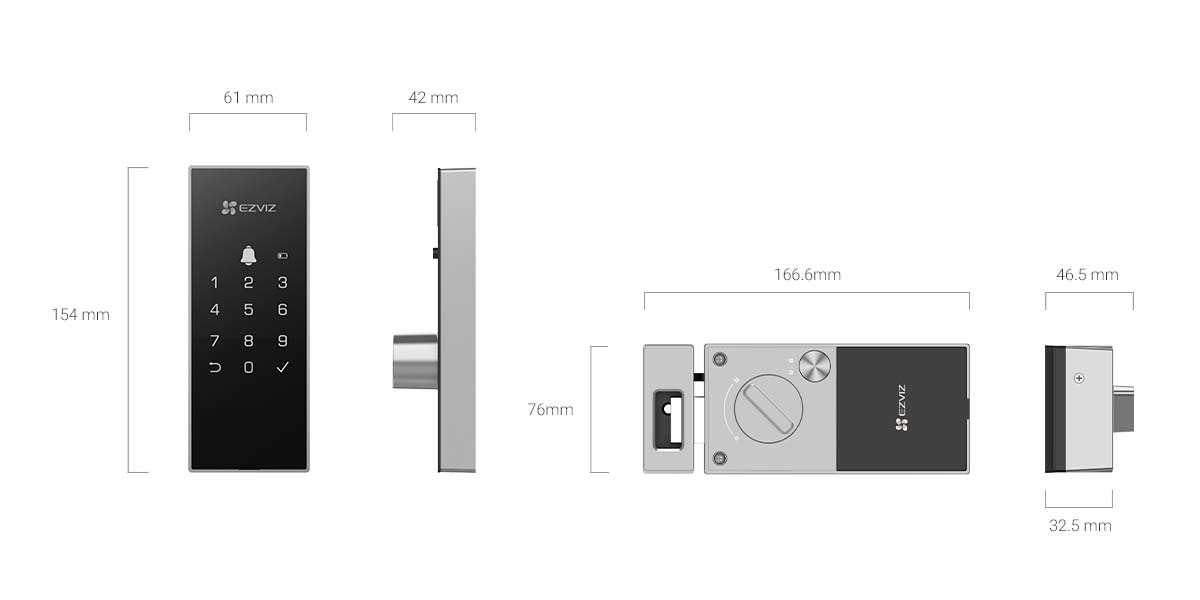

| Dimensions | Front Panel：154mm × 61mm × 18mm
Rear Panel：155mm × 76mm × 33.5mm |
| Communication | EZVIZ Connect 2.4G Wi-Fi |
| Keyless unlocking | Support |
| Working power | 4 AA Alkaline Batteries |
| Working condition | -25℃~55℃
Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic locking | Support |
| Lock status check | Support |
| User management | Support |
| Message notification | Support |
| Door-left-open alert | Support |
| Privacy mode | Support (Enable via EZVIZ APP) |
| Temporary passcode | Support |
| Remote unlock | Support |
| Real-time notification | Support |
| EZVIZ Connect | Support |
| Low battery alert | Support |
| Front Panel Function | |
| Password unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual passcode | Support |
| Electric doorbell | Support |
| Low battery alert | Support |
| Anti-tamper alert | Support |
| Anti-test alert | Support (enter 5 errors in 5 minutes, locked for 3 minutes) |
| In the box | |
| In the box | – Front Panel |
| – Rear Panel | |
| – Screw Kit | |
| – Rear Panel Gasket | |
| – Mounting Bracket (for the Rear Panel) | |
| – Door buckle box | |
| – Door buckle box Gasket (X3) | |
| – AA-sized Battery (X4) | |
| – Hole Templet | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / RoHS) / REACH / SVHC / WEEE |
