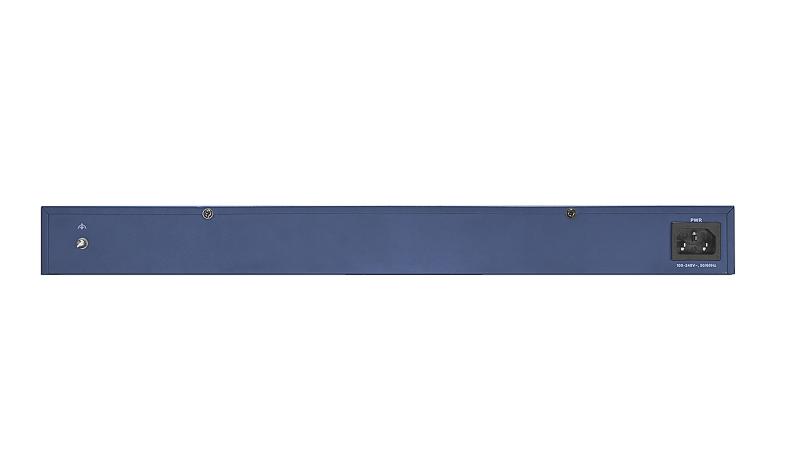

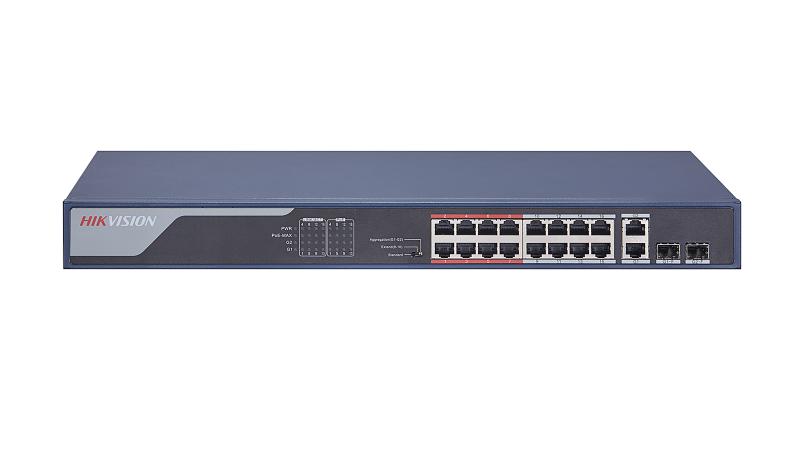

Hikvision DS-3E0318P-E(B) 16-Port Fast Ethernet Unmanaged PoE Switch

SKU DS-3E0318P-E(B) Categories , ,

• Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.

Buy the Hikvision DS-3E0318P-E(B) 16-Port Fast Ethernet Unmanaged PoE Switch at Intexco. Provides reliable PoE connectivity for IP cameras and network devices. For price and order, please contact via the WhatsApp button.

Description

General

Dimensions (W × H × D) 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)
Shell Metal material
Gross Weight 3.47 kg (7.65 lb)
Net Weight 2.65 kg (5.84 lb)
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity 5% to 95% (no condensation)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity 5% to 95% (no condensation)
Power Consumption in Idle 20 W
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 4 A
Max. Power Consumption 250 W

Network Parameters

Ports 16 × 10/100 Mbps PoE ports, 2 × Gigabit combos
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode Standard mode (default); Extend mode
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode Store-and-forward switching
High Priority Ports Ports 1 to 8
MAC Address Table 4 K
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.356 Mpps
Internal Cache 2.75 Mbits
Ports for Long-Distance Transmission Ports 9 to 16

PoE Power Supply

PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Ports 1 to 16
Max. Port Power 30 W
PoE Power Budget 230 W

Dialing Function

Long Range Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.

Approval

EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
